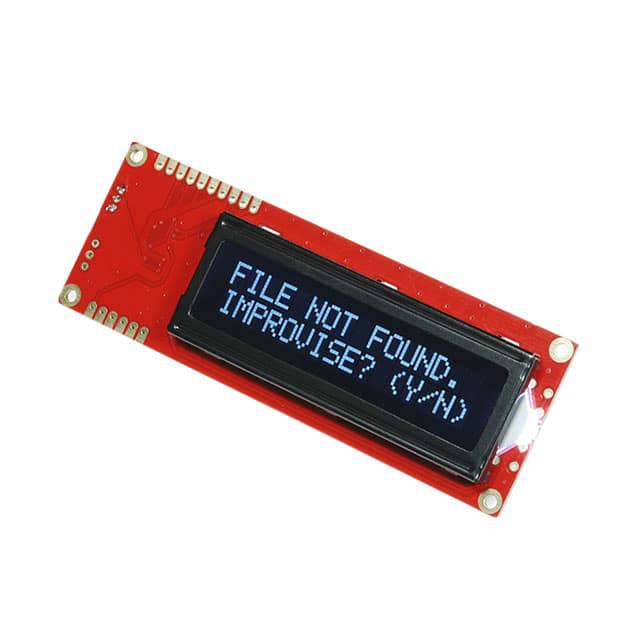

SparkFun Electronics LCD-09395

(0)

Product Information

Character Size:

5.23mm H x 3.00mm W

HTSUS:

8531.20.0020

RoHS Status:

ROHS3 Compliant

Character Format:

5 x 8 Dots

Operating Temperature:

0°C ~ 50°C

Display Format:

16 x 2

Interface:

Parallel/Serial

Package:

Bulk

Viewing Area:

71.45mm L x 27.03mm W

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Text Color:

White

standardLeadTime:

6 Weeks

Checking for live stock

This is manufactured by SparkFun Electronics. The manufacturer part number is LCD-09395. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. The product has 0°c ~ 50°c operating temperature range. A bespoke product is parallel/serial interface. It is shipped in bulk. Provides a 71.45mm l x 27.03mm w viewing area. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product has a classic black background colour. It features a remarkable stn - super-twisted nematic display. Consists of 32 characters. It has optimum voltage supply of 5v. Typically has a transflective display mode. Has a dot size of 0.56mm w x 0.61mm h. Backlight Options - led. The product is designated with the ear99 code number

Serial LCD Backpack Schematic(Design Resources)

SerLCD v2.5(Datasheets)

ADM1602U Drawing(Datasheets)

Serial Enabled 5V LCD Screen Drawing(Datasheets)

LCD-09395(Datasheets)

Serial LCD Quickstart(Datasheets)
