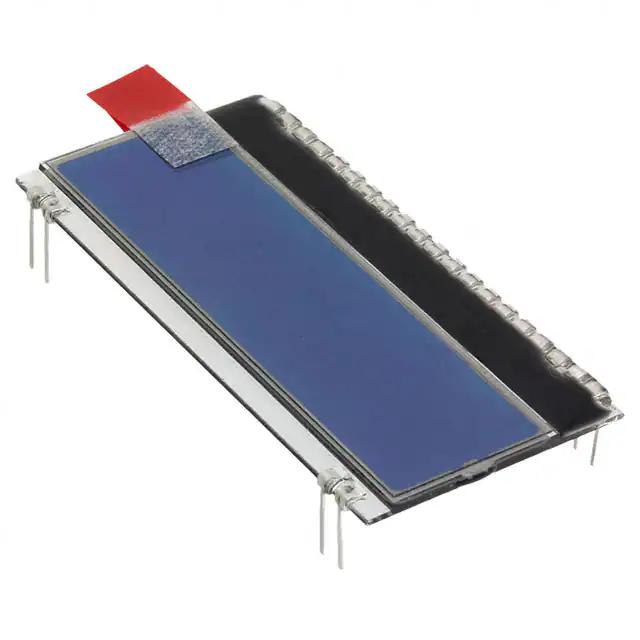

Display Visions EA DOGM162B-A

EA-DOGM162B-A Display Visions EA DOGM162B-A
EA DOGM162B-A
EA-DOGM162B-A Display Visions EA DOGM162B-A
Display Visions

Product Information

Characters per Row:
16
Character Rows:
2
Controller Type:
ST7036
External Depth:
2mm
Driver Mounting:
PCB Mount
Character Width:
2.5mm
Display Matrix Technology:
STN
Illumination Colour:
White, Yellow-Green
Operating Temperature Range:
-20 → +70°C
Character Matrix:
2 Rows by 16 Characters
Viewing Area Width:
51mm
Character Height:
5.6mm
External Dimensions:
27.9 x 55 x 2mm
Viewing Area Height:
14.5mm
Viewing Area Dimensions:
51 x 15mm
Background Colour:
Blue
Display Type:
Alphanumeric
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-20°C
Display Mode:
Transmissive
External Height:
27.9mm
External Width:
55mm
Interface Type:
4-bit, 8-bit, SPI
Character Size:
5.57mm H x 2.47mm W
HTSUS:
8531.20.0020
RoHS Status:
RoHS Compliant
Character Format:
5 x 8 Dots
Operating Temperature:
-20°C ~ 70°C
Display Format:
16 x 2
Interface:
Parallel, 8-Bit, SPI
Package:
Tray
Viewing Area:
51.00mm L x 14.50mm W
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Text Color:
White
standardLeadTime:
20 Weeks
Background Color:
Blue
Display Type:
STN - Super-Twisted Nematic
Series:
EA DOG
Number of Characters:
32
Outline L x W x H:
55.00mm x 27.94mm x 2.00mm
Voltage - Supply:
3.3V
Base Product Number:
EADOGM162
Display Mode:
Transmissive
Dot Size:
0.47mm W x 0.67mm H
Backlight:
Without Backlight
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Display Visions. The manufacturer part number is EA DOGM162B-A. It features a remarkable alphanumeric display. It has a maximum operating temperature of +70°c. Whereas, the minimum operating temperature of the product is -20°c. Typically has a transmissive display mode. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs compliant. The product has -20°c ~ 70°c operating temperature range. A bespoke product is parallel, 8-bit, spi interface. It is shipped in tray. Provides a 51.00mm l x 14.50mm w viewing area. Its typical moisture sensitivity level is 1 (unlimited). It has a long 20 weeks standard lead time. The product has a classic blue background colour. It features a remarkable stn - super-twisted nematic display. The product ea dog, is a highly preferred choice for users. Consists of 32 characters. It has optimum voltage supply of 3.3v. Moreover, it corresponds to eadogm162, a base product number of the product. Has a dot size of 0.47mm w x 0.67mm h. Backlight Options - without backlight. The product is designated with the ear99 code number

pdf icon
DOG Series 3.3V Datasheet(Issue 8.2012)(Technical Reference)
pdf icon
EA DOG-M(Datasheets)
