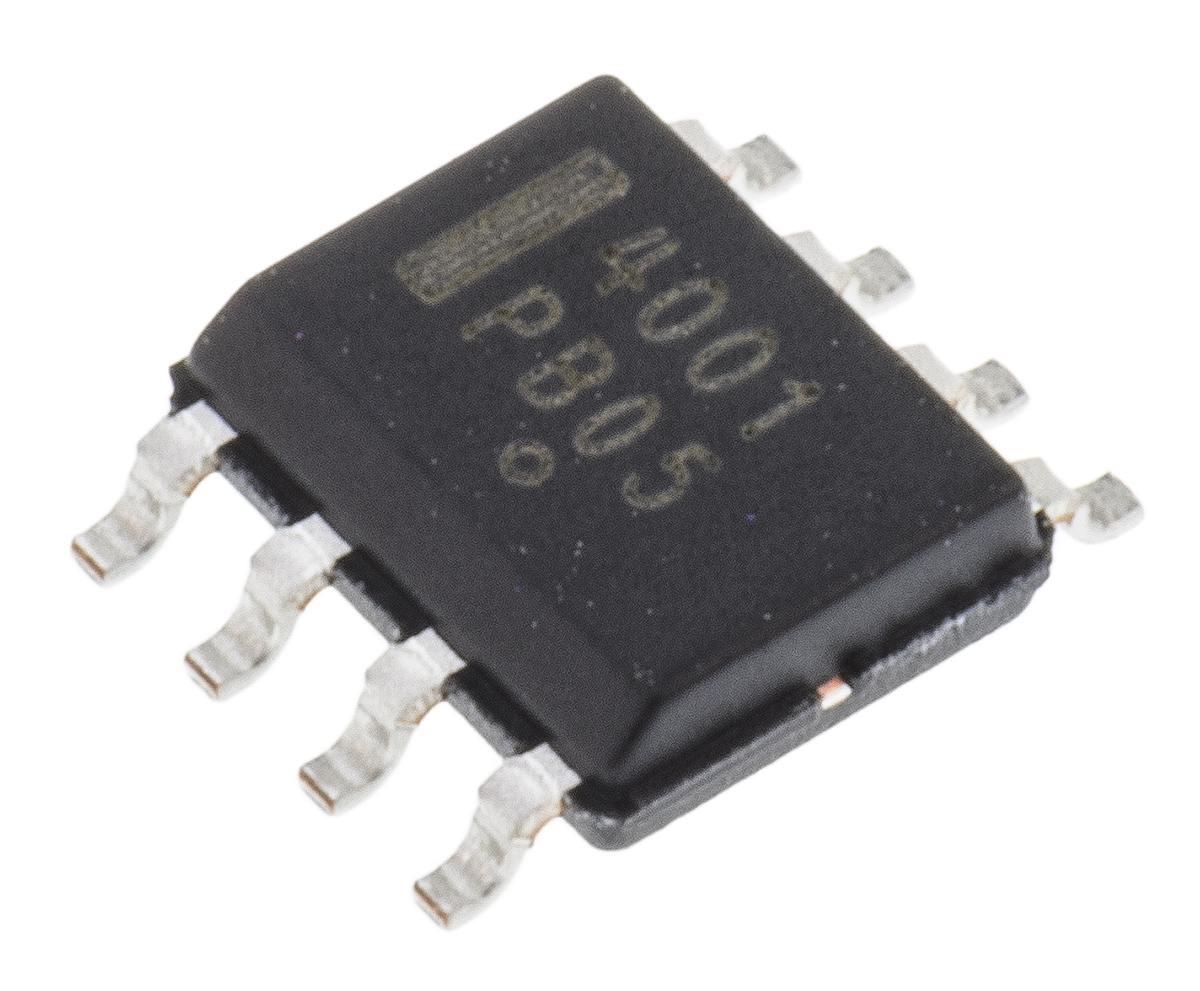

ON Semiconductor NUD4001DR2G LED Driver IC, 3.6 → 30 V 500mA 8-Pin SOIC

NUD4001DR2G ON Semiconductor LED Driver IC, 3.6 → 30 V 500mA 8-Pin SOIC
NUD4001DR2G
onsemi

Product Information

Output Current:
500mA
Dimming Operation:
PWM
AC or DC Input Voltage:
dc
Maximum Output Power:
1.13W
Input Voltage:
3.6 → 30 V
Number of Pins:
8
Package Type:
SOIC
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
500mA
Operating Temperature:
-40°C ~ 125°C (TA)
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
Linear
Internal Switch(s):
Yes
Dimming:
PWM
REACH Status:
REACH Unaffected
Voltage - Supply (Max):
30V
Applications:
Automotive, Lighting
Voltage - Supply (Min):
3.6V
Topology:
-
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
48 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Voltage - Output:
28V
Frequency:
-
Base Product Number:
NUD4001
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is ON Semiconductor LED Driver IC 3.6 → 30 V 500mA 8-Pin SOIC manufactured by onsemi. The manufacturer part number is NUD4001DR2G. It is comprised of 8 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It carries 500ma output or channel current. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in linear configuration. Internal switch options: yes. Dimming Info: pwm. In addition, it is reach unaffected. Absolute maximum supply voltage of 30v. The product is widely employed in automotive, lighting. The minimum voltage supply of the product is 3.6v. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 3 (168 hours). It has a long 48 weeks standard lead time. The product is available in surface mount configuration. 8-soic is the supplier device package value. Furthermore, the output voltage is 28v. Moreover, it corresponds to nud4001, a base product number of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
Wire conversion 10/Aug/2021(PCN Assembly/Origin)
pdf icon
NUD4001, NSVD4001(Datasheets)
