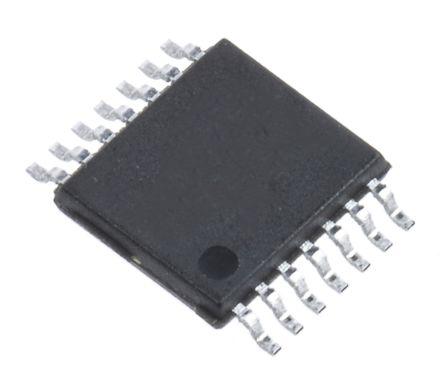

onsemi MC74VHC04DTR2G, Hex Inverter Logic Gate, 14-Pin TSSOP

Enrgtech Part No: ET100195087
|
Manufacturer Part No:
MC74VHC04DTR2G
|
Manufacturer: Onsemi

MC74VHC04DTR2G onsemi , Hex Inverter Logic Gate, 14-Pin TSSOP

(0)

Product Information

Width:

4.5mm

Height:

1.05mm

Length:

5.1mm

Pin Count:

Dimensions:

5.1 x 4.5 x 1.05mm

Input Type:

CMOS

Output Type:

Bipolar Schottky TTL

Logic Family:

VHC

Package Type:

TSSOP

Mounting Type:

Surface Mount

Logic Function:

Inverter

Number of Elements:

1575 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.23

£ 5.75

100

£ 0.20

£ 20.00

250

£ 0.17

£ 42.50

Mfr Part No:

MC74VHC04DTR2G

Seller:

Onsemi

Origin:

Warranty:

Manufacturer

Data Code:

ET100195087

Order Today!

From: United Kingdom

Est Ship Date: 16 Jul, 2026

Est Fastest Delivery: 17 Jul, 2026

Quantity Quantity

This is onsemi Hex Inverter Logic Gate 14-Pin TSSOP manufactured by Onsemi. The manufacturer part number is MC74VHC04DTR2G. Furthermore, the product is 4.5mm wide. In addition, the height is 1.05mm. Its accurate length is 5.1mm. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. It carries cmos input type. Furthermore, it has abipolar schottky ttl output. The product is available in surface mount configuration. It carries 6 elements. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.
