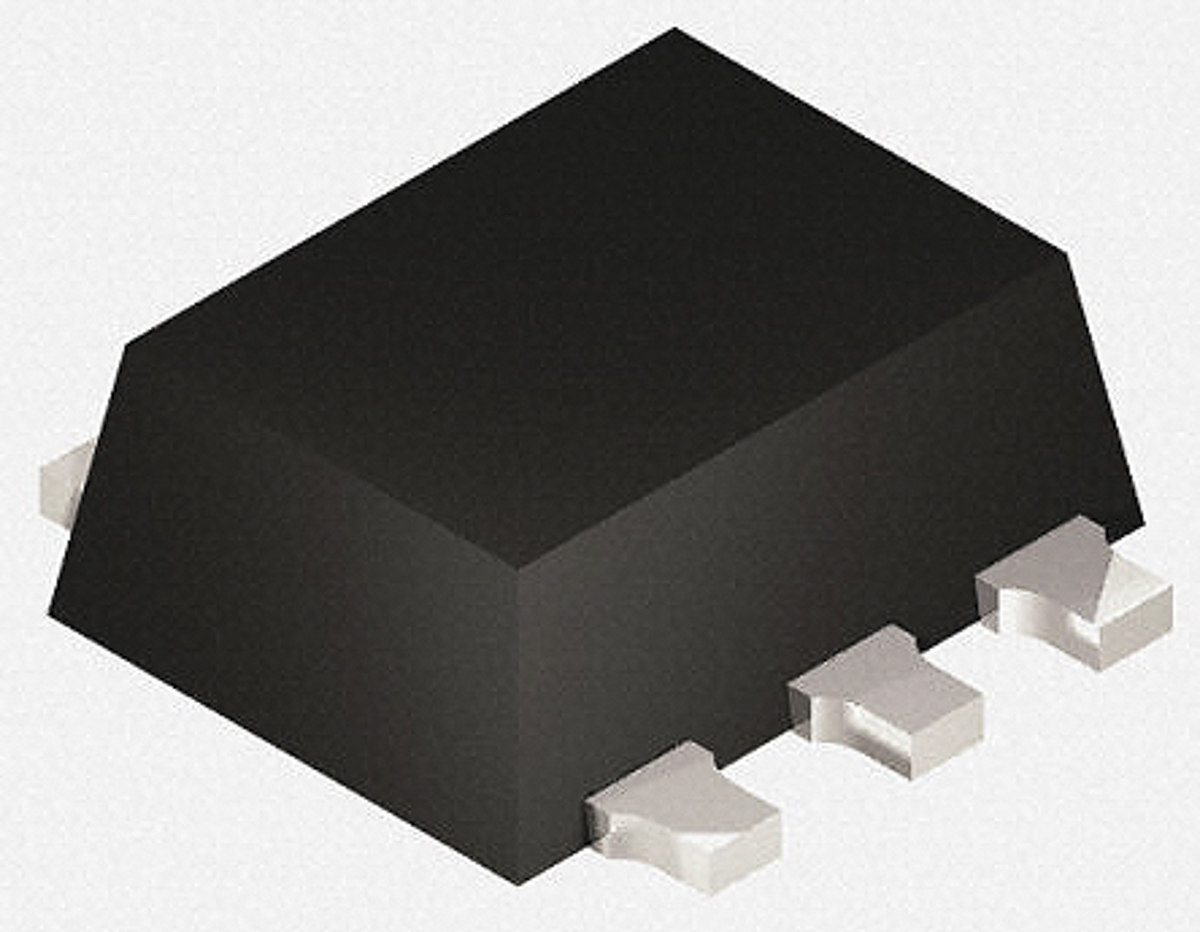

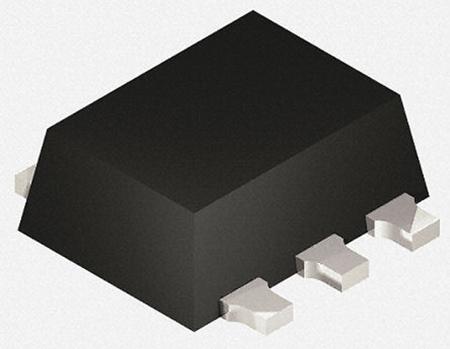

Toshiba TC7SZ02FE 2-Input NOR Logic Gate, 5-Pin SOT-553

Enrgtech Part No: ET100307771
|
Manufacturer Part No:
TC7SZ02FE
|
Manufacturer: Toshiba

TC7SZ02FE Toshiba 2-Input NOR Logic Gate, 5-Pin SOT-553

(0)

Product Information

Width:

1.2mm

Height:

0.55mm

Length:

1.6mm

Pin Count:

Dimensions:

1.6 x 1.2 x 0.55mm

Input Type:

CMOS

Output Type:

CMOS

Package Type:

SOT-553

Mounting Type:

Surface Mount

Logic Function:

NOR

Number of Elements:

Automotive Standard:

AEC-Q100

600 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

100

£ 0.068

£ 6.80

500

£ 0.060

£ 30.00

1000

£ 0.055

£ 55.00

Mfr Part No:

TC7SZ02FE

Seller:

Toshiba

Origin:

Warranty:

Manufacturer

Data Code:

ET100307771

Order Today!

From: United Kingdom

Est Ship Date: 20 Jul, 2026

Est Fastest Delivery: 21 Jul, 2026

Quantity Quantity

This is 2-Input NOR Logic Gate 5-Pin SOT-553 manufactured by Toshiba. The manufacturer part number is TC7SZ02FE. Furthermore, the product is 1.2mm wide. In addition, the height is 0.55mm. Its accurate length is 1.6mm. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. It carries cmos input type. Furthermore, it has acmos output. The product is available in surface mount configuration. It carries 1 elements. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c.

0900766b816230e9.pdf(RS)

0900766b81644fcb.pdf(RS)
