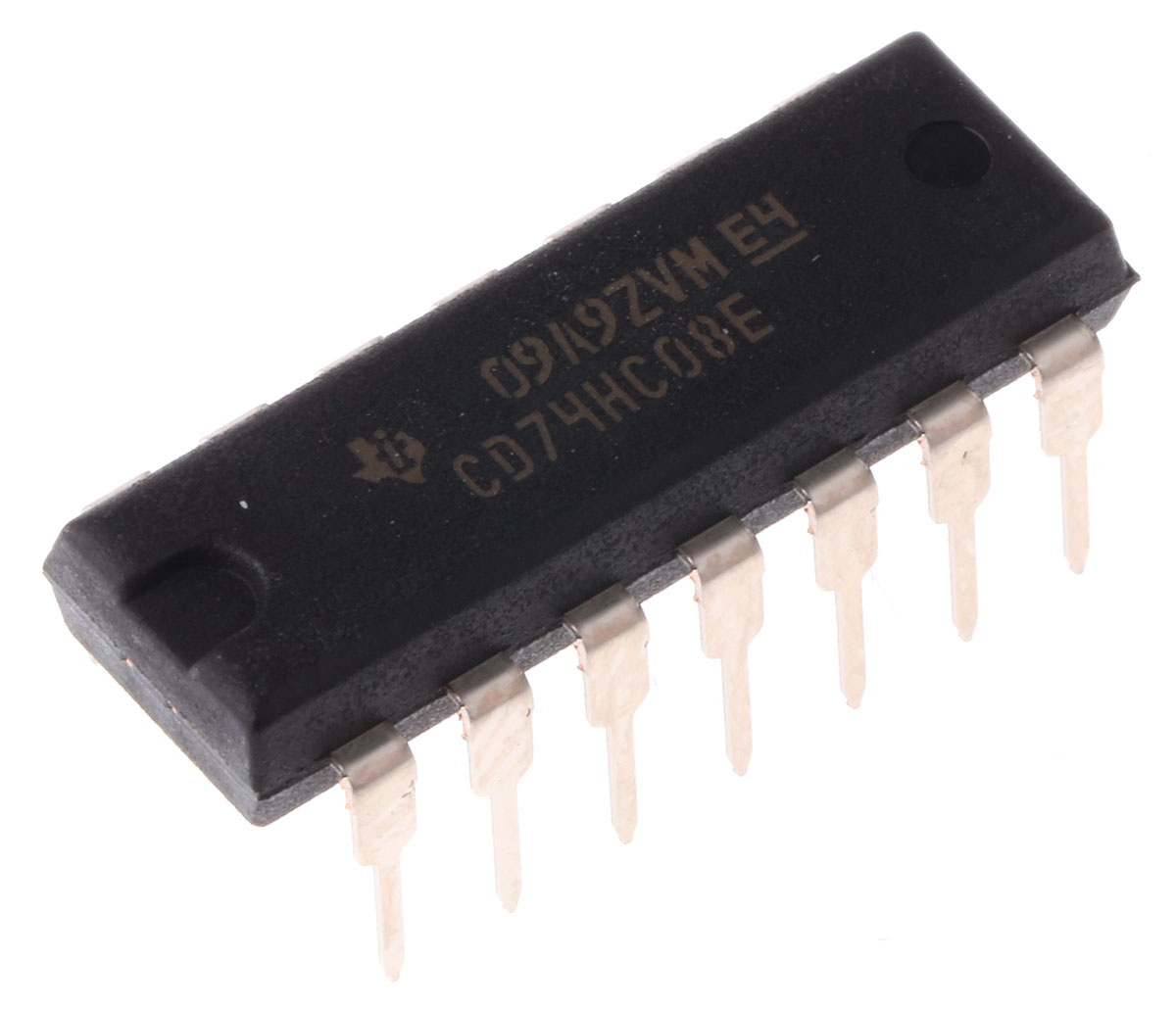

Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
2 V
Logic Function:
AND
Logic Family:
HC
Height:
4.57mm
Width:
6.35mm
Length:
19.3mm
Package Type:
PDIP
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-55 °C
Maximum Propagation Delay Time @ Maximum CL:
15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V
Schmitt Trigger Input:
No
Number of Elements:
4
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Maximum Operating Supply Voltage:
6 V
Number of Inputs:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Package / Case:
14-DIP (0.300", 7.62mm)
Input Logic Level - Low:
0.5V ~ 1.8V
Input Logic Level - High:
1.5V ~ 4.2V
Current - Quiescent (Max):
2 µA
Max Propagation Delay @ V, Max CL:
10ns @ 5V, 15pF
Package:
Tube
standardLeadTime:
6 Weeks
Number of Circuits:
4
Features:
-
Mounting Type:
Through Hole
Series:
74HC
Logic Type:
AND Gate
Supplier Device Package:
14-PDIP
Voltage - Supply:
2V ~ 6V
Current - Output High, Low:
5.2mA, 5.2mA
ECCN:
EAR99
