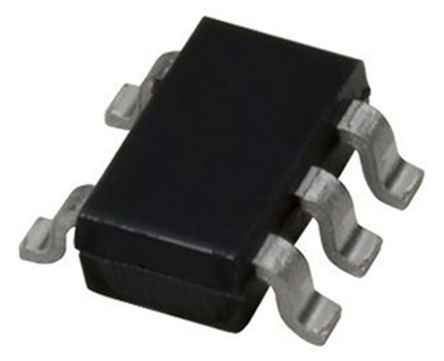

DiodesZetex 74LVC1G86SE-7, 2-Input XOR Logic Gate, 1.65 to 5.5 V, 5-Pin SOT-353

74LVC1G86SE-7 DiodesZetex , 2-Input XOR Logic Gate, 1.65 to 5.5 V, 5-Pin SOT-353
74LVC1G86SE-7
74LVC1G86SE-7 DiodesZetex , 2-Input XOR Logic Gate, 1.65 to 5.5 V, 5-Pin SOT-353
DiodesZetex

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
1.65 V
Logic Function:
XOR
Output Type:
Push-Pull
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
SOT-353
Logic Family:
LVC
Minimum Operating Temperature:
-40 °C
Maximum Propagation Delay Time @ Maximum CL:
5.5ns
Maximum Operating Supply Voltage:
5.5 V
Number of Elements:
1
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 2-Input XOR Logic Gate 1.65 to 5.5 V 5-Pin SOT-353 manufactured by DiodesZetex. The manufacturer part number is 74LVC1G86SE-7. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Furthermore, it has apush-pull output. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. Whereas, the minimum operating temperature of the product is -40 °c. It carries 1 elements. It has a maximum operating temperature of +125 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 74LVC1G86SE-7 on website for other similar products.
We accept all major payment methods for all products including ET14058308. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with 74LVC1G86SE-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Gates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex 74LVC1G86SE-7, 2-Input XOR Logic Gate, 1.65 to 5.5 V, 5-Pin SOT-353. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex 74LVC1G86SE-7, 2-Input XOR Logic Gate, 1.65 to 5.5 V, 5-Pin SOT-353.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058308 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number 74LVC1G86SE-7.
Yes. You can also search 74LVC1G86SE-7 on website for other similar products.
Yes. We ship 74LVC1G86SE-7 Internationally to many countries around the world.
