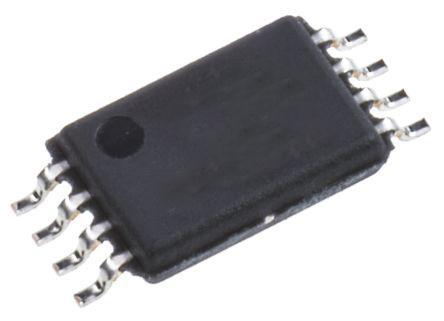

Toshiba TC7WZ86FU, Dual 2-Input XOR Logic Gate, 8-Pin SOT-505

TC7WZ86FU Toshiba , Dual 2-Input XOR Logic Gate, 8-Pin SOT-505
Toshiba

Product Information

Maximum Low Level Output Current:
32mA
Dimensions:
2.9 x 2.8 x 1.05mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
XOR
Output Type:
CMOS
Height:
1.05mm
Width:
2.8mm
Length:
2.9mm
Package Type:
SOT-505
Propagation Delay Test Condition:
15pF
Input Type:
CMOS
Maximum Propagation Delay Time @ Maximum CL:
12 ns @ 15 pF
Maximum Operating Supply Voltage:
5.5 V
Number of Elements:
2
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Maximum High Level Output Current:
-32mA
RoHs Compliant
Checking for live stock

This is Dual 2-Input XOR Logic Gate 8-Pin SOT-505 manufactured by Toshiba. The manufacturer part number is TC7WZ86FU. The given dimensions of the product include 2.9 x 2.8 x 1.05mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has acmos output. In addition, the height is 1.05mm. Furthermore, the product is 2.8mm wide. Its accurate length is 2.9mm. It carries cmos input type. It carries 2 elements. It has a maximum operating temperature of +85 °c.
