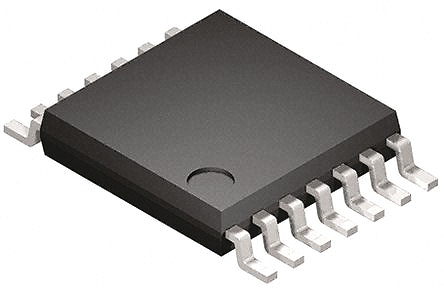

74LV08PW,112 Logic Gate

74LV08PW-112 74LV08PW,112 Logic Gate
Nexperia

Product Information

Dimensions:
5.1 x 4.5 x 0.95mm
Logic Family:
LV
Width:
4.5mm
Input Type:
CMOS
Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Maximum Propagation Delay Time @ Maximum CL:
33 ns @ 15 pF
Minimum Operating Supply Voltage:
1 V
Output Type:
Single Ended
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
5.1mm
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
AND
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
15pF
RoHs Compliant
Checking for live stock

This is Logic Gate manufactured by Nexperia. The manufacturer part number is 74LV08PW,112. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. Furthermore, the product is 4.5mm wide. It carries cmos input type. Furthermore, it has asingle ended output. It has a maximum operating temperature of +125 °c. Its accurate length is 5.1mm. The product is available in surface mount configuration. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It carries 4 elements.

pdf icon
74LV08PW Quad 2-input AND Gate Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
