Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
-4mA
Dimensions:
5.1 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
23 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Logic Family:
LVX
Height:
1.05mm
Width:
4.5mm
Length:
5.1mm

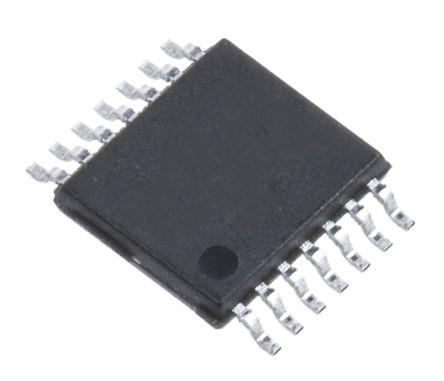

Package Type:
TSSOP
Propagation Delay Test Condition:
50pF
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Number of Elements:
6
Maximum Operating Temperature:
+85 °C
Pin Count:
14
Maximum Operating Supply Voltage:
3.6 V
Number of Inputs:
1
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
2 µA
Operating Temperature:
-40°C ~ 85°C
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
Input Logic Level - Low:
0.9V
Input Logic Level - High:
2.2V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
14.1ns @ 3.3V, 50pF
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
28 Weeks
Number of Circuits:
6
Features:
Schmitt Trigger
Mounting Type:
Surface Mount
Series:
74LVX
Logic Type:
Inverter
Supplier Device Package:
14-TSSOP
Voltage - Supply:
2V ~ 3.6V
Current - Output High, Low:
4mA, 4mA
Base Product Number:
74LVX14
ECCN:
EAR99
