Automotive Standard:
AEC-Q100
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
1
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-55 °C
Logic Function:
AND
Logic Family:
74VHC
Height:
1mm
Width:
1.35mm
Length:
2.2mm

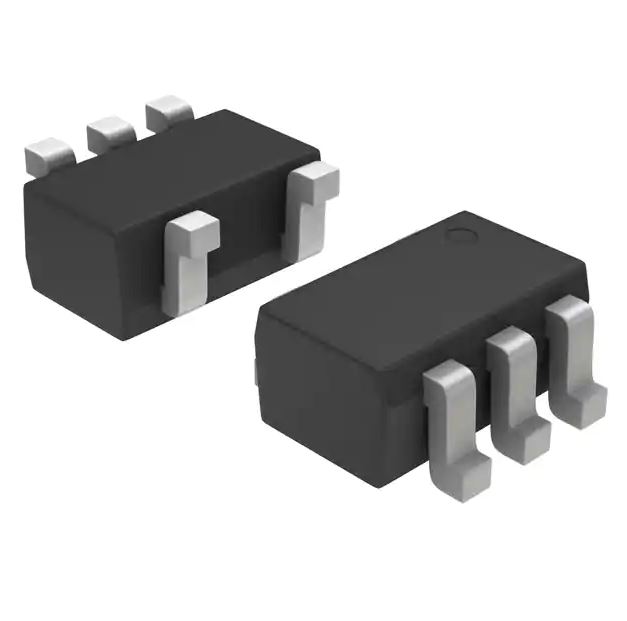

Package Type:
SOT-353
Propagation Delay Test Condition:
50pF
Input Type:
CMOS, TTL
Maximum Propagation Delay Time @ Maximum CL:
16.5ns
Maximum Operating Supply Voltage:
5.5 V
Number of Elements:
1
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Number of Inputs:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
1 µA
Operating Temperature:
-55°C ~ 125°C
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Input Logic Level - Low:
0.53V ~ 0.8V
Input Logic Level - High:
1.4V ~ 2V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
7.9ns @ 5V, 50pF
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Circuits:
1
Features:
-
Mounting Type:
Surface Mount
Series:
74VHC
Logic Type:
AND Gate
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
Voltage - Supply:
3V ~ 5.5V
Current - Output High, Low:
8mA, 8mA
Base Product Number:
74VHC1GT08
ECCN:
EAR99
