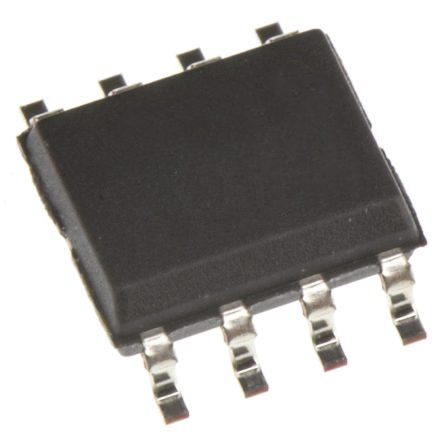

If you're looking for a high-performance 1-input logic gate for your digital circuits, look no further than the MC100EL04DG from Onsemi. This versatile surface-mount gate is designed to deliver excellent speed, precision, and reliability, making it ideal for a wide range of applications.
Small Size, Big Performance:
One of the key advantages of the MC100EL04DG is its compact size. Measuring just 2mm x 2mm x 0.85mm, this gate can be easily integrated into even the most space-constrained designs. Despite its small form factor, the MC100EL04DG can deliver exceptional performance thanks to its high-speed ECL technology.
Fast and Precise Operation:
With a typical propagation delay of just 0.7ns, the MC100EL04DG is one of the fastest 1-input logic gates on the market today. This rapid response time makes it ideal for high-speed digital applications, such as clock distribution, data transmission, and signal conditioning. The gate's precision design also ensures reliable operation even in demanding environments.
Excellent Signal Integrity:
Another advantage of the MC100EL04DG is its excellent signal integrity. The gate is designed to operate with a differential input voltage of 350mV, making it suitable for use with a wide range of input signals. Additionally, the gate features on-chip termination resistors that help to reduce reflections and ensure clean signal transmission.
Wide Operating Range:
Whether you're designing a system that operates at low voltages or high temperatures, the MC100EL04DG is up to the task. The gate features an operating voltage range of -5.2V to -3.8V, making it suitable for use in a wide range of digital circuits. Additionally, the gate can operate at temperatures of up to 85°C, making it suitable for use in demanding environments.
For more information please check the datasheets.
