Maximum Low Level Output Current:
4.8mA
Maximum High Level Output Current:
4.8mA
Dimensions:
8.75 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
18 ns @ 15 pF
Propagation Delay Test Condition:
15pF
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
4.5 V
Output Type:
LSTTL
Height:
1.5mm
Width:
4mm
Length:
8.75mm
Package Type:
SOIC
Logic Family:
HCT
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+85 °C
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
Number of Inputs:
1
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
1 µA
Operating Temperature:
-40°C ~ 85°C

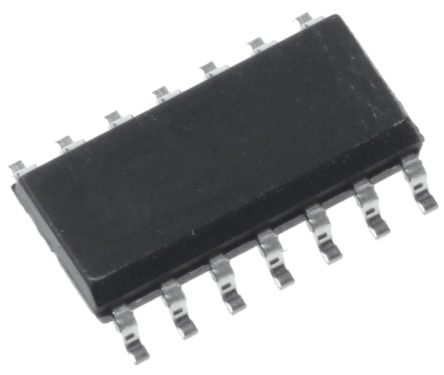

Package / Case:
14-SOIC (0.154", 3.90mm Width)
Input Logic Level - Low:
0.5V ~ 0.6V
Input Logic Level - High:
1.9V ~ 2.1V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
20ns @ 5V, 50pF
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
26 Weeks
Number of Circuits:
6
Features:
Schmitt Trigger
Mounting Type:
Surface Mount
Series:
74HCT
Logic Type:
Inverter
Supplier Device Package:
14-SOIC
Voltage - Supply:
4.5V ~ 5.5V
Current - Output High, Low:
4.8mA, 4.8mA
Base Product Number:
74HCT14
ECCN:
EAR99
