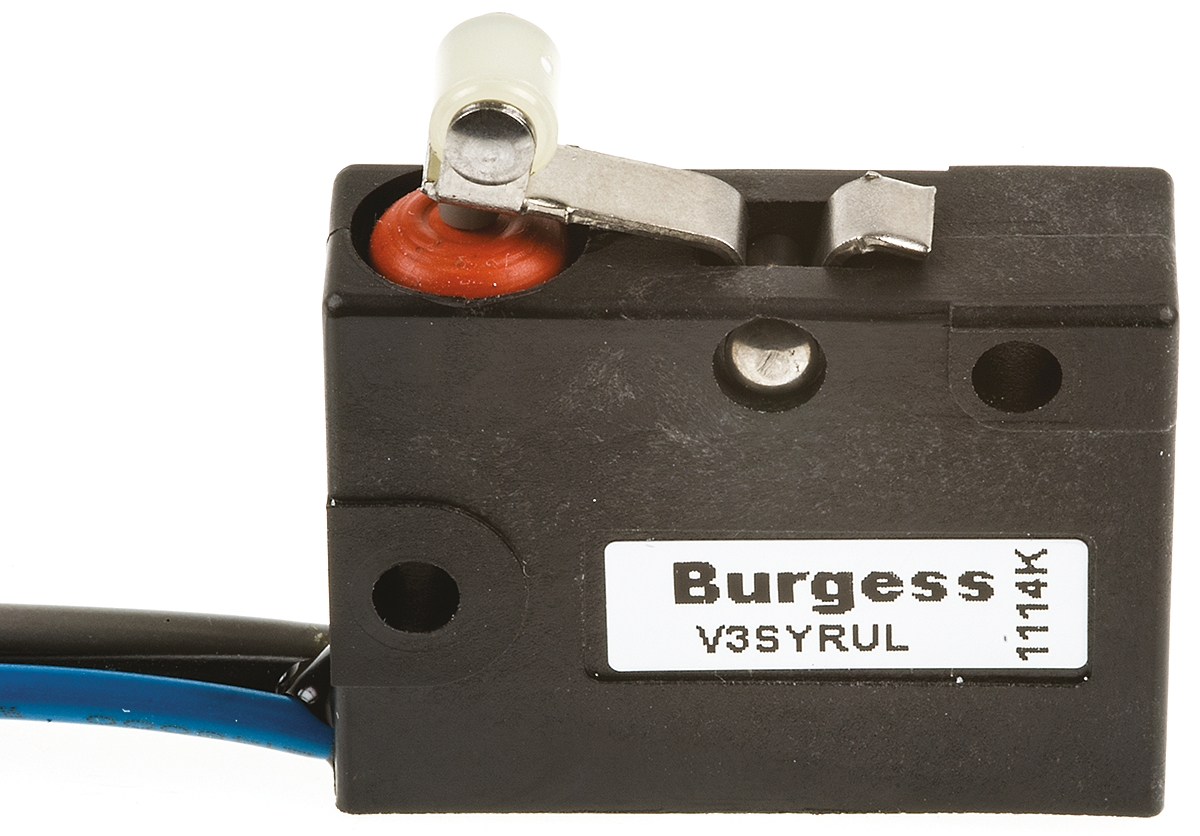

SP-NO/NC Short Roller Lever Microswitch, 5 A @ 250 V ac

V3SYR-UL SP-NO/NC Short Roller Lever Microswitch, 5 A @ 250 V ac
Saia-Burgess

Product Information

Operating Force:
3.9 N
Minimum Operating Temperature:
-40°C
IP Rating:
IP67
Contact Current Rating:
5 A @ 250 V ac
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPDT
Case Material:
Glass Fibre Reinforced Nylon
Actuator Type:
Short Roller Lever
Mechanical Life:
10^6Operations
Release Force:
0.4N
Maximum Operating Temperature:
+85°C
Terminal Type:
Pre-wired
Contact Material:
Silver
RoHs Compliant
Checking for live stock

This is SP-NO/NC Short Roller Lever Microswitch 5 A @ 250 V ac manufactured by Saia-Burgess. The manufacturer part number is V3SYR-UL. It has a 3.9 n of operating force. Whereas, the minimum operating temperature of the product is -40°c. The product carries short roller lever actuator. The product also provide mechanical stability with 10^6operations. It carries a release force of 0.4n. It has a maximum operating temperature of +85°c. The terminal is a pre-wired type. The product is made from sturdy silver materials.

pdf icon
V3S Series Miniature Micro Switches Product Data(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search V3SYR-UL on website for other similar products.
We accept all major payment methods for all products including ET14077642. Please check your shopping cart at the time of order.
You can order Saia-Burgess brand products with V3SYR-UL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Micro Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SP-NO/NC Short Roller Lever Microswitch, 5 A @ 250 V ac. You can also check on our website or by contacting our customer support team for further order details on SP-NO/NC Short Roller Lever Microswitch, 5 A @ 250 V ac.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14077642 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Saia-Burgess" products on our website by using Enrgtech's Unique Manufacturing Part Number V3SYR-UL.
Yes. You can also search V3SYR-UL on website for other similar products.
Yes. We ship V3SYR-UL Internationally to many countries around the world.
