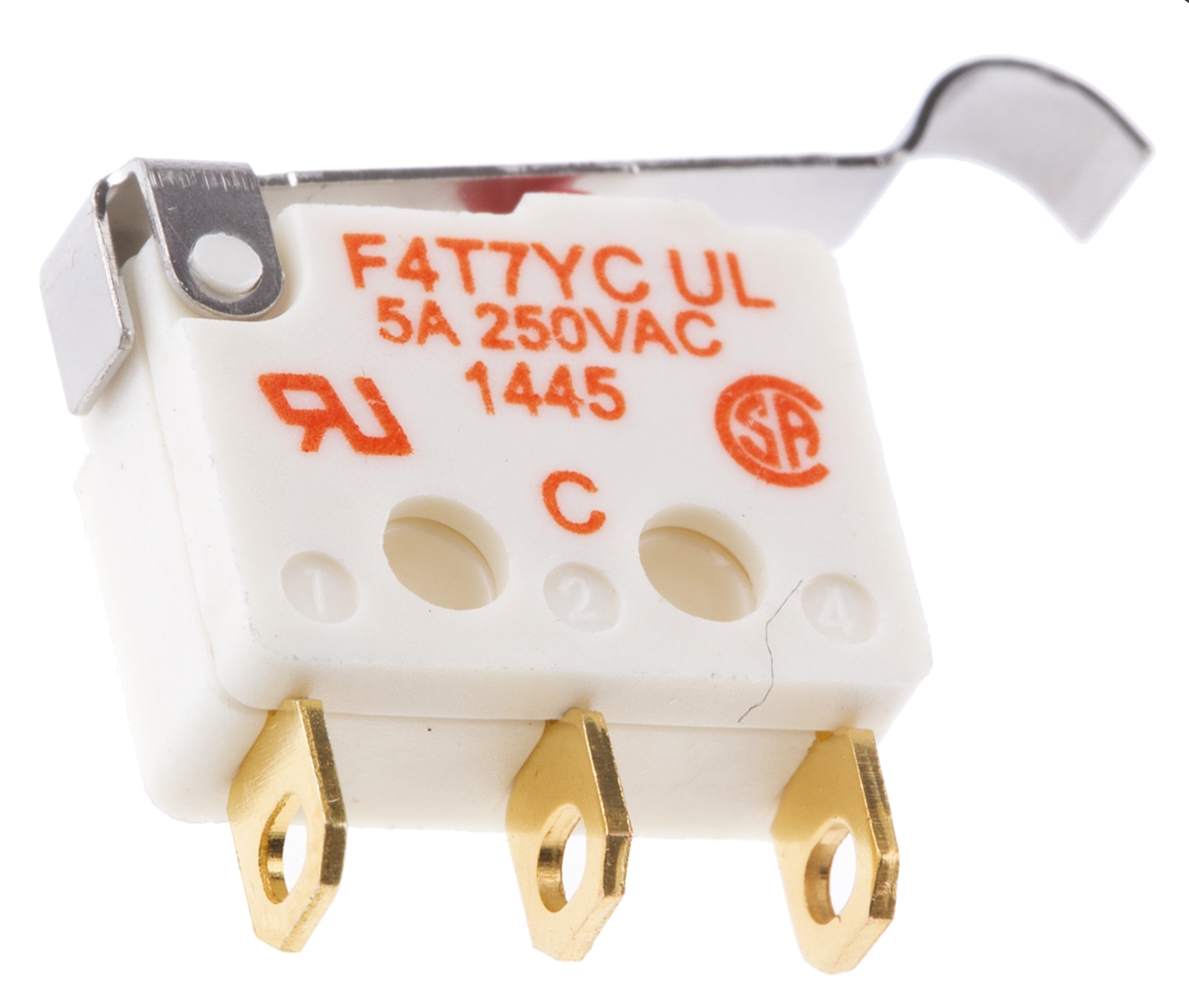

SP-NO/NC Simulated Roller Lever Microswitch, 5 A @ 250 V ac

F4T7YC-UL SP-NO/NC Simulated Roller Lever Microswitch, 5 A @ 250 V ac
F4T7YC-UL
F4T7YC-UL SP-NO/NC Simulated Roller Lever Microswitch, 5 A @ 250 V ac
Saia-Burgess

Product Information

Operating Force:
0.7 N
Minimum Operating Temperature:
-40°C
IP Rating:
IP40
Contact Current Rating:
5 A @ 250 V ac
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPDT
Case Material:
Glass Fibre Reinforced Nylon
Actuator Type:
Simulated Roller Lever
Mechanical Life:
10^7Operations
Release Force:
0.09N
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder
Contact Material:
Silver
RoHs Compliant
Checking for live stock

This is SP-NO/NC Simulated Roller Lever Microswitch 5 A @ 250 V ac manufactured by Saia-Burgess. The manufacturer part number is F4T7YC-UL. It has a 0.7 n of operating force. Whereas, the minimum operating temperature of the product is -40°c. The product carries simulated roller lever actuator. The product also provide mechanical stability with 10^7operations. It carries a release force of 0.09n. It has a maximum operating temperature of +85°c. The terminal is a solder type. The product is made from sturdy silver materials.

pdf icon
Datasheet_F4T7 Series(Technical Reference)
pdf icon
F4T6, F4T7, F4T8, F5T8 - UL certificate(Technical Reference)
