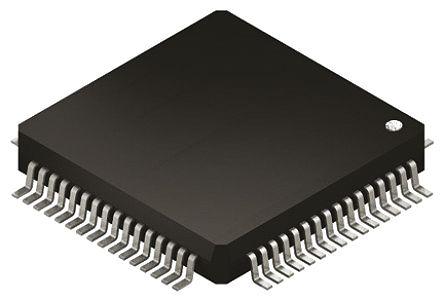

Renesas Electronics R5F101LJAFB#V0, 16bit RL78 Microcontroller, 32MHz, 256 kB Flash, 64-Pin LFQFP

R5F101LJAFB-V0 Renesas Electronics R5F101LJAFB#V0, 16bit RL78 Microcontroller, 32MHz, 256 kB Flash, 64-Pin LFQFP
R5F101LJAFB#V0
R5F101LJAFB#V0
ET13879420
Renesas Electronics

Product Information

Dimensions:
10 x 10 x 1.5mm
Number of I2C Channels:
7
Width:
10mm
Program Memory Size:
256 kB
RAM Size:
20 kB
ADC Channels:
12
Number of Timers:
1
Data Bus Width:
16bit
Instruction Set Architecture:
CISC
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
32MHz
Number of LIN Channels:
1
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
3
Family Name:
RL78/G13
Device Core:
RL78
ADC Resolution:
8 bit, 10 bit
Timer Resolution:
16bit
Timers:
8 x 16 bit
Number of ADC Units:
1
Pin Count:
64
Mounting Type:
Surface Mount
Length:
10mm
Height:
1.5mm
Typical Operating Supply Voltage:
1.6 → 5.5 V
ADCs:
1 (12 x 10 bit/12 x 8 bit)
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
6
RoHs Compliant
Checking for live stock

This is 16bit RL78 Microcontroller 32MHz 256 kB Flash 64-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F101LJAFB#V0. The given dimensions of the product include 10 x 10 x 1.5mm. Furthermore, the product is 10mm wide. In addition, 256 kb is the program memory size. The product has typical 20 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +85 °c. The product is available in surface mount configuration. Its accurate length is 10mm. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
RL78/G13, Renesas MCU(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search R5F101LJAFB#V0 on website for other similar products.
We accept all major payment methods for all products including ET13879420. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F101LJAFB#V0 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F101LJAFB#V0, 16bit RL78 Microcontroller, 32MHz, 256 kB Flash, 64-Pin LFQFP. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F101LJAFB#V0, 16bit RL78 Microcontroller, 32MHz, 256 kB Flash, 64-Pin LFQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13879420 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number R5F101LJAFB#V0.
Yes. You can also search R5F101LJAFB#V0 on website for other similar products.
Yes. We ship R5F101LJAFB#V0 Internationally to many countries around the world.
