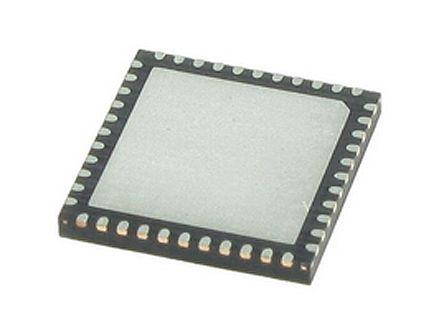

Atmel ATXMEGA16D4-MH, 8 bit, 16 bit AVR Microcontroller, 32MHz, 20 kB Flash, 44-Pin VQFN

ATXMEGA16D4-MH Atmel , 8 bit, 16 bit AVR Microcontroller, 32MHz, 20 kB Flash, 44-Pin VQFN
Atmel

Product Information

Dimensions:
7.1 x 7.1 x 0.95mm
Width:
7.1mm
Program Memory Size:
20 kB
Number of PWM Units:
4
RAM Size:
2 kB
ADC Channels:
12
Number of Timers:
4
Data Bus Width:
8 bit, 16 bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
VQFN
Maximum Frequency:
32MHz
Data Rate:
115.2kbps
Maximum Operating Temperature:
+85 °C
PWM Resolution:
16bit
Family Name:
ATxmega
Device Core:
AVR
ADC Resolution:
12bit
Timer Resolution:
16bit
Timers:
4 x 16 bit
Number of ADC Units:
1
Pin Count:
44
Pulse Width Modulation:
4 (8 x 16 bit)
Mounting Type:
Surface Mount
PWM Channels:
8
Length:
7.1mm
Height:
0.95mm
ADCs:
1 (12 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 8 bit 16 bit AVR Microcontroller 32MHz 20 kB Flash 44-Pin VQFN manufactured by Atmel. The manufacturer part number is ATXMEGA16D4-MH. The given dimensions of the product include 7.1 x 7.1 x 0.95mm. Furthermore, the product is 7.1mm wide. In addition, 20 kb is the program memory size. The product has typical 2 kb RAM size. It is a flash program memory type. It has a maximised data speed rate of 115.2kbps. It has a maximum operating temperature of +85 °c. The product is available in surface mount configuration. Its accurate length is 7.1mm. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
ATXMEGA D4 Microcontroller Data Sheet(Technical Reference)
