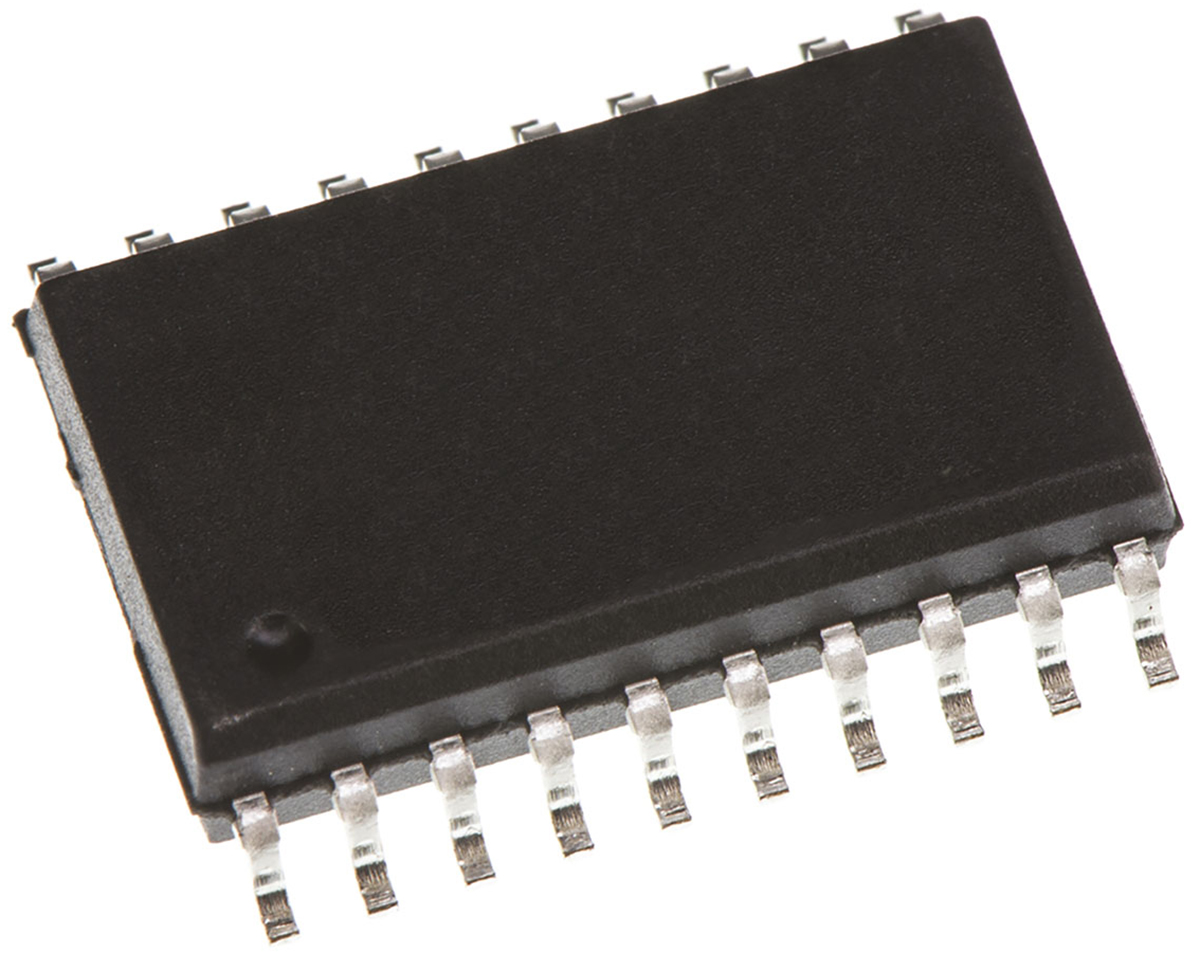

NXP MC9S08PA8VWJ, 8bit S08 Microcontroller, 20MHz, 8 kB Flash, 20-Pin SOIC

MC9S08PA8VWJ NXP , 8bit S08 Microcontroller, 20MHz, 8 kB Flash, 20-Pin SOIC
NXP

Product Information

Dimensions:
12.95 x 7.6 x 2.4mm
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
0
Width:
7.6mm
Program Memory Size:
8 kB
Number of PWM Units:
1
RAM Size:
2.048 kB
Data Bus Width:
8bit
Instruction Set Architecture:
MCU
Program Memory Type:
Flash
Package Type:
SOIC
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
1
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
HCS08
Device Core:
S08
Length:
12.95mm
Number of ADC Units:
1
Pin Count:
20
Pulse Width Modulation:
1
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
2.4mm
Typical Operating Supply Voltage:
2.7 → 5.5 V
ADCs:
1 x 12 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit S08 Microcontroller 20MHz 8 kB Flash 20-Pin SOIC manufactured by NXP. The manufacturer part number is MC9S08PA8VWJ. The given dimensions of the product include 12.95 x 7.6 x 2.4mm. Furthermore, the product is 7.6mm wide. In addition, 8 kb is the program memory size. The product has typical 2.048 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +105 °c. Whereas, the minimum operating temperature of the product is -40 °c. Its accurate length is 12.95mm. The product is available in surface mount configuration. In addition, the height is 2.4mm.

pdf icon
MC9S08PA16 Series Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
