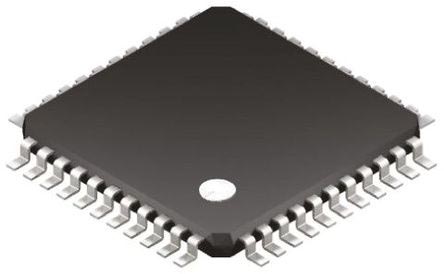

Microchip PIC18F4680-E/PT, 8bit PIC Microcontroller, 40MHz, 64 kB, 1024 B Flash, 44-Pin TQFP

PIC18F4680-E-PT Microchip PIC18F4680-E/PT, 8bit PIC Microcontroller, 40MHz, 64 kB, 1024 B Flash, 44-Pin TQFP
Microchip

Product Information

Dimensions:
10 x 10 x 1.05mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
10mm
Program Memory Size:
1.024 kB, 64 kB
Number of PWM Units:
2
RAM Size:
3.328 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
40MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC18F
Device Core:
PIC
Length:
10mm
Number of ADC Units:
1
Pin Count:
44
Pulse Width Modulation:
1 (CCP), 1 (ECCP)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
4.2 → 5.5 V
ADCs:
11 x 10 bit
Number of CAN Channels:
1
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 40MHz 64 kB 1024 B Flash 44-Pin TQFP manufactured by Microchip. The manufacturer part number is PIC18F4680-E/PT. The given dimensions of the product include 10 x 10 x 1.05mm. Furthermore, the product is 10mm wide. In addition, 1.024 kb, 64 kb is the program memory size. The product has typical 3.328 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c. Its accurate length is 10mm. The product is available in surface mount configuration. In addition, the height is 1.05mm.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
