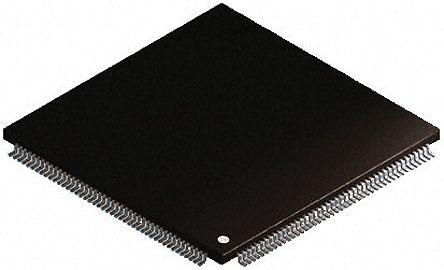

Renesas Electronics R5F72165ADFP#V1, 32bit SH2A-FPU Microcontroller, 200MHz, 32 (Flash) kB, 512 (ROM) kB Flash, 176-Pin

R5F72165ADFP-V1 Renesas Electronics R5F72165ADFP#V1, 32bit SH2A-FPU Microcontroller, 200MHz, 32 (Flash) kB, 512 (ROM) kB Flash, 176-Pin
Renesas Electronics

Product Information

Dimensions:
24.1 x 24.1 x 1.55mm
USB Channels:
1
Width:
24.1mm
Program Memory Size:
512 kB
Number of PWM Units:
0
RAM Size:
64 kB
ADC Channels:
8
Number of Timers:
1
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
200MHz
Maximum Operating Temperature:
+85 °C
Maximum Number of Ethernet Channels:
1
Family Name:
SuperH
Device Core:
SH2A-FPU
ADC Resolution:
12bit
Timer Resolution:
16bit
Timers:
11 x 16 bit
Number of ADC Units:
1
Pin Count:
176
Mounting Type:
Surface Mount
Length:
24.1mm
Height:
1.55mm
Typical Operating Supply Voltage:
3 → 3.6 V
ADCs:
1 (8 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 32bit SH2A-FPU Microcontroller 200MHz 32 (Flash) kB 512 (ROM) kB Flash 176-Pin manufactured by Renesas Electronics. The manufacturer part number is R5F72165ADFP#V1. The given dimensions of the product include 24.1 x 24.1 x 1.55mm. Furthermore, the product is 24.1mm wide. In addition, 512 kb is the program memory size. The product has typical 64 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +85 °c. The product is available in surface mount configuration. Its accurate length is 24.1mm. In addition, the height is 1.55mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
MCU Scout Industrial(Technical Reference)
pdf icon
SuperH platform brochure 32-bit RISC Microcontrollers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
SH7214 Group, SH7216 Group User Manual(Technical Reference)
