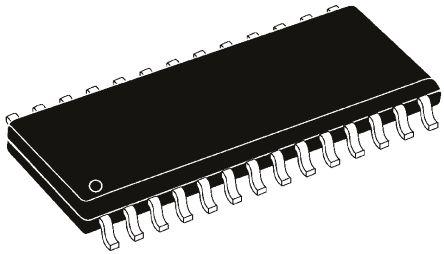

Microchip PIC18F23K22-E/SO, 8bit PIC18F Microcontroller, 16MHz, 8 kB Flash, 28-Pin SOIC

PIC18F23K22-E-SO Microchip PIC18F23K22-E/SO, 8bit PIC18F Microcontroller, 16MHz, 8 kB Flash, 28-Pin SOIC
Microchip

Product Information

Dimensions:
17.9 x 7.5 x 2.05mm
Number of I2C Channels:
2
Number of USART Channels:
2
USB Channels:
0
Width:
7.5mm
Program Memory Size:
8 kB
Number of PWM Units:
2
RAM Size:
512 B
ADC Channels:
17
Number of Timers:
7
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SOIC
Maximum Frequency:
16MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC18F
Device Core:
PIC18F
ADC Resolution:
10bit
Timer Resolution:
8 bit, 16bit
Timers:
3 x 8 bit, 4 x 16 bit
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
2
Mounting Type:
Surface Mount
Length:
17.9mm
Number of Ethernet Channels:
0
Height:
2.05mm
Typical Operating Supply Voltage:
2.3 → 5.5 V
ADCs:
1(17 x 10 bit)
Number of CAN Channels:
0
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 8bit PIC18F Microcontroller 16MHz 8 kB Flash 28-Pin SOIC manufactured by Microchip. The manufacturer part number is PIC18F23K22-E/SO. The given dimensions of the product include 17.9 x 7.5 x 2.05mm. Furthermore, the product is 7.5mm wide. In addition, 8 kb is the program memory size. The product has typical 512 b RAM size. It is a flash program memory type. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in surface mount configuration. Its accurate length is 17.9mm. In addition, the height is 2.05mm.
