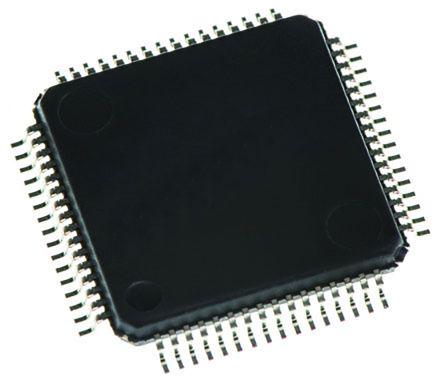

Renesas Electronics R5F52316CDFM#30, 32bit RXv2 CPU Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP

R5F52316CDFM-30 Renesas Electronics R5F52316CDFM#30, 32bit RXv2 CPU Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP
R5F52316CDFM-30 Renesas Electronics R5F52316CDFM#30, 32bit RXv2 CPU Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP
Renesas Electronics

Product Information

Dimensions:
10.1 x 10.1 x 1.55mm
USB Channels:
1
Width:
10.1mm
Program Memory Size:
256 kB
Number of PWM Units:
0
RAM Size:
32 kB
ADC Channels:
12
Number of Timers:
3
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
54MHz
Maximum Operating Temperature:
+85 °C
Family Name:
RX231
Device Core:
RXv2 CPU
ADC Resolution:
12bit
Timer Resolution:
8 bit, 16bit
Timers:
1(17 x 16 bit), 2(2 x 8 bit)
Number of ADC Units:
1
Pin Count:
64
Mounting Type:
Surface Mount
Length:
10.1mm
Height:
1.55mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
1 (12 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 32bit RXv2 CPU Microcontroller 54MHz 256 kB Flash 64-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F52316CDFM#30. The given dimensions of the product include 10.1 x 10.1 x 1.55mm. Furthermore, the product is 10.1mm wide. In addition, 256 kb is the program memory size. The product has typical 32 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +85 °c. The product is available in surface mount configuration. Its accurate length is 10.1mm. In addition, the height is 1.55mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search R5F52316CDFM#30 on website for other similar products.
We accept all major payment methods for all products including ET16788435. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F52316CDFM#30 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F52316CDFM#30, 32bit RXv2 CPU Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F52316CDFM#30, 32bit RXv2 CPU Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16788435 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number R5F52316CDFM#30.
Yes. You can also search R5F52316CDFM#30 on website for other similar products.
Yes. We ship R5F52316CDFM#30 Internationally to many countries around the world.
