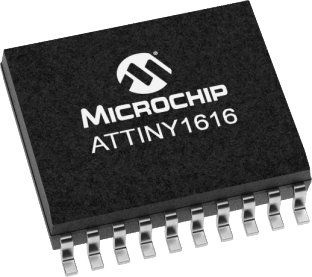

Microchip ATTINY1616-SFR, 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC

ATTINY1616-SFR Microchip , 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC
ATTINY1616-SFR Microchip , 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC
Microchip

Product Information

Dimensions:
13 x 7.6 x 2.35mm
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
7.6mm
Program Memory Size:
16 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
2.048 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SOIC
Maximum Frequency:
20MHz
Data Rate:
115kbit/s
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
ATtiny16
Device Core:
AVR
Length:
13mm
Number of ADC Units:
2
Pin Count:
20
Pulse Width Modulation:
1 (6 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
2.35mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
20 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit AVR Microcontroller 20MHz 16 kB Flash 20-Pin SOIC manufactured by Microchip. The manufacturer part number is ATTINY1616-SFR. The given dimensions of the product include 13 x 7.6 x 2.35mm. Furthermore, the product is 7.6mm wide. In addition, 16 kb is the program memory size. The product has typical 2.048 kb RAM size. It is a flash program memory type. It has a maximised data speed rate of 115kbit/s. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c. Its accurate length is 13mm. The product is available in surface mount configuration. In addition, the height is 2.35mm.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
