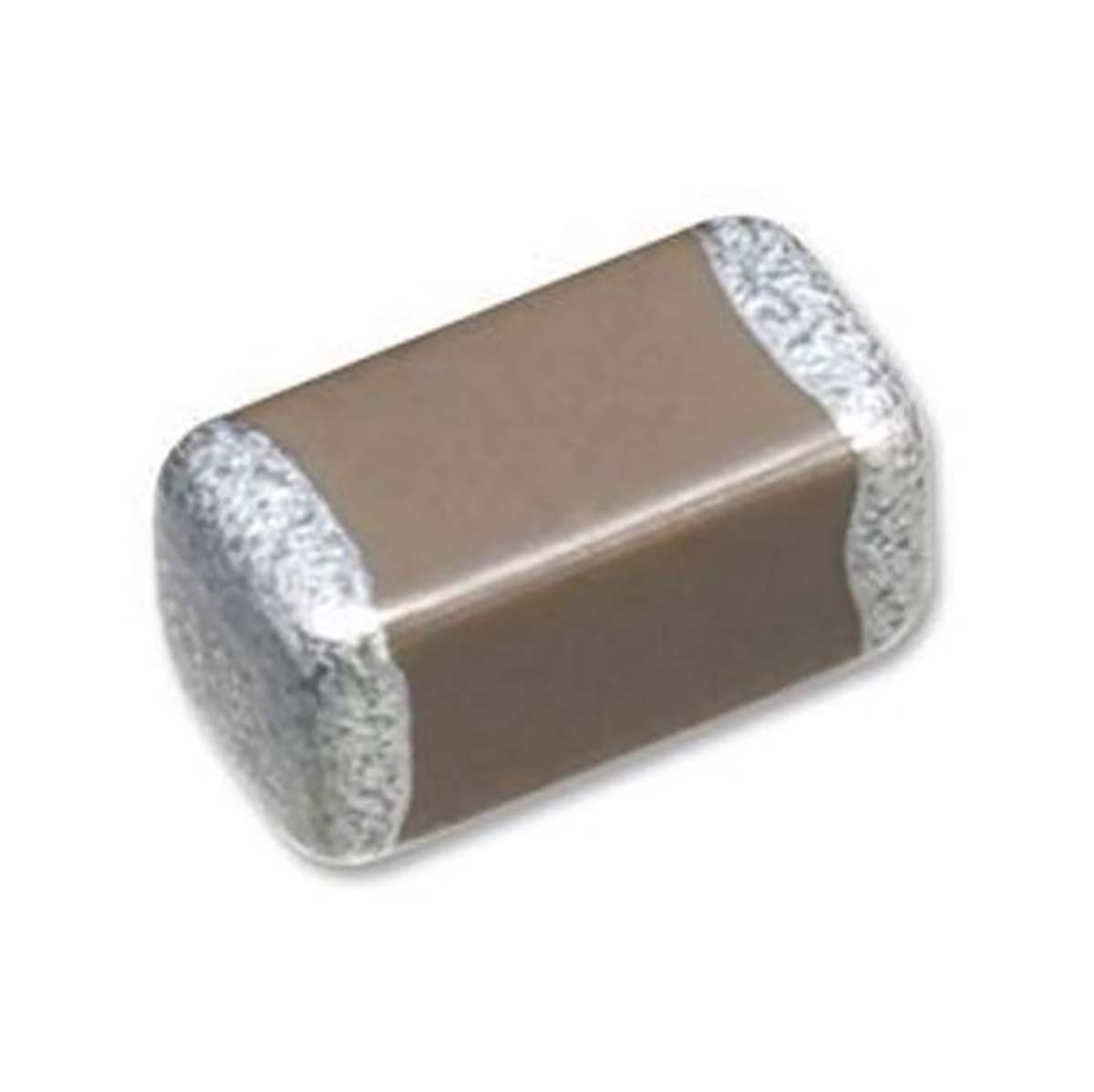

Yageo, CC0402MRX5R5BB475, Multilayer Ceramic Capacitor, 6.3V dc, 0.039in L x 0.020in W (1.00mm x 0.50mm)

CC0402MRX5R5BB475 Yageo, , Multilayer Ceramic Capacitor, 6.3V dc, 0.039in L x 0.020in W (1.00mm x 0.50mm)
CC0402MRX5R5BB475
CC0402MRX5R5BB475 Yageo, , Multilayer Ceramic Capacitor, 6.3V dc, 0.039in L x 0.020in W (1.00mm x 0.50mm)
Yageo

Product Information

Mounting Type:
Surface Mount
Series:
Standard
Capacitance:
4.7µF
Length:
1mm
Voltage:
6.3V dc
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Terminal Type:
Surface Mount
Dielectric:
X5R
Package/Case:
0402 (1005M)
Failure Rate:
-
Ratings:
-
HTSUS:
8532.24.0020
RoHS Status:
ROHS3 Compliant
Temperature Coefficient:
X5R
Capacitance:
4.7 µF
Operating Temperature:
-55°C ~ 85°C
Package / Case:
0402 (1005 Metric)
Tolerance:
±20%
Voltage - Rated:
6.3V
Height - Seated (Max):
-
REACH Status:
REACH Unaffected
Applications:
General Purpose
Thickness (Max):
0.022" (0.55mm)
Package:
Tape & Reel (TR)
Size / Dimension:
0.039" L x 0.020" W (1.00mm x 0.50mm)
standardLeadTime:
18 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Surface Mount, MLCC
Lead Style:
-
Series:
CC
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock

The CC0402MRX5R5BB475 is a Multilayer Ceramic Capacitor (MLCC) produced by YAGEO, a leading manufacturer of passive electronic components. Its small form factor, high capacitance, and low ESR and ESL make it ideal for use in a wide range of electronic devices and applications.

Construction and Design:

The CC0402MRX5R5BB475 capacitor has a compact and durable design, measuring 1.0mm x 0.5mm x 0.5mm x 0.5mm x 0.5mm in size. It features a multilayer ceramic construction, which makes it resistant to temperature variations, mechanical stress, and voltage spikes. The capacitor has a nickel barrier layer that prevents leaching electrode metals, ensuring long-term stability and reliability.

Electrical Properties:

  • The CC0402MRX5R5BB475 capacitor has a capacitance value of 4.7uF, with a tolerance of ±20%.
  • It has a rated voltage of 6.3V DC, making it suitable for low-voltage applications.
  • The capacitor has a maximum operating temperature of 85°C and a temperature coefficient of ±15%.

Applications Information:

  • The CC0402MRX5R5BB475 capacitor is widely used in various electronic devices, including smartphones, tablets, laptops, and other portable electronic devices.
  • It is commonly used in power supplies, DC-DC converters, and other electronic circuits that require high capacitance values in a small form factor.
  • The capacitor is also suitable for high-frequency applications due to its low equivalent series resistance (ESR) and low equivalent series inductance (ESL).



pdf icon
Datasheet - CC(Technical Reference)
pdf icon
High Capacitance MLCC's Brochure(Datasheets)
pdf icon
Product Selection, Ordering Guide(Datasheets)
pdf icon
CC Series, Class 2 X5R 4V-50V(Datasheets)
