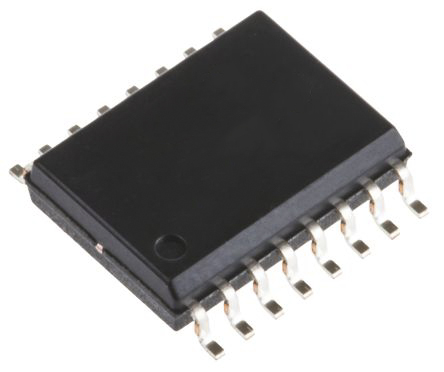

onsemi MC14521BDG

MC14521BDG onsemi
MC14521BDG
MC14521BDG
onsemi

Product Information

Automotive Standard:
AEC-Q100
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
2600 ns @ 50 pF
Minimum Operating Supply Voltage:
3 V
Maximum Quiescent Current:
150µA
Logic Function:
Frequency Divider
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-55 °C
Minimum Pulse Width:
120 ns
Maximum Operating Supply Voltage:
18 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Package / Case:
16-SOIC (0.154", 3.90mm Width)
Direction:
-
Number of Bits per Element:
24
REACH Status:
REACH Unaffected
Trigger Type:
Negative Edge
Reset:
Asynchronous
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Timing:
-
standardLeadTime:
27 Weeks
Mounting Type:
Surface Mount
Series:
4000B
Logic Type:
Divide-by-2
Supplier Device Package:
16-SOIC
Count Rate:
12 MHz
Voltage - Supply:
3 V ~ 18 V
Number of Elements:
1
Base Product Number:
MC14521
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is MC14521BDG. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. The product consists of 24 bits per element. In addition, it is reach unaffected. A product with a trigger type negative edge. It features reset options including asynchronous. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 27 weeks standard lead time. The product 4000b, is a highly preferred choice for users. The product is a divide-by-2 logic type. 16-soic is the supplier device package value. It has optimum voltage supply of 3 v ~ 18 v. It carries 1 elements. Moreover, it corresponds to mc14521, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet MC14521BDG(Technical Reference)
pdf icon
MC14521B(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
