Depth:
3mm
Series:

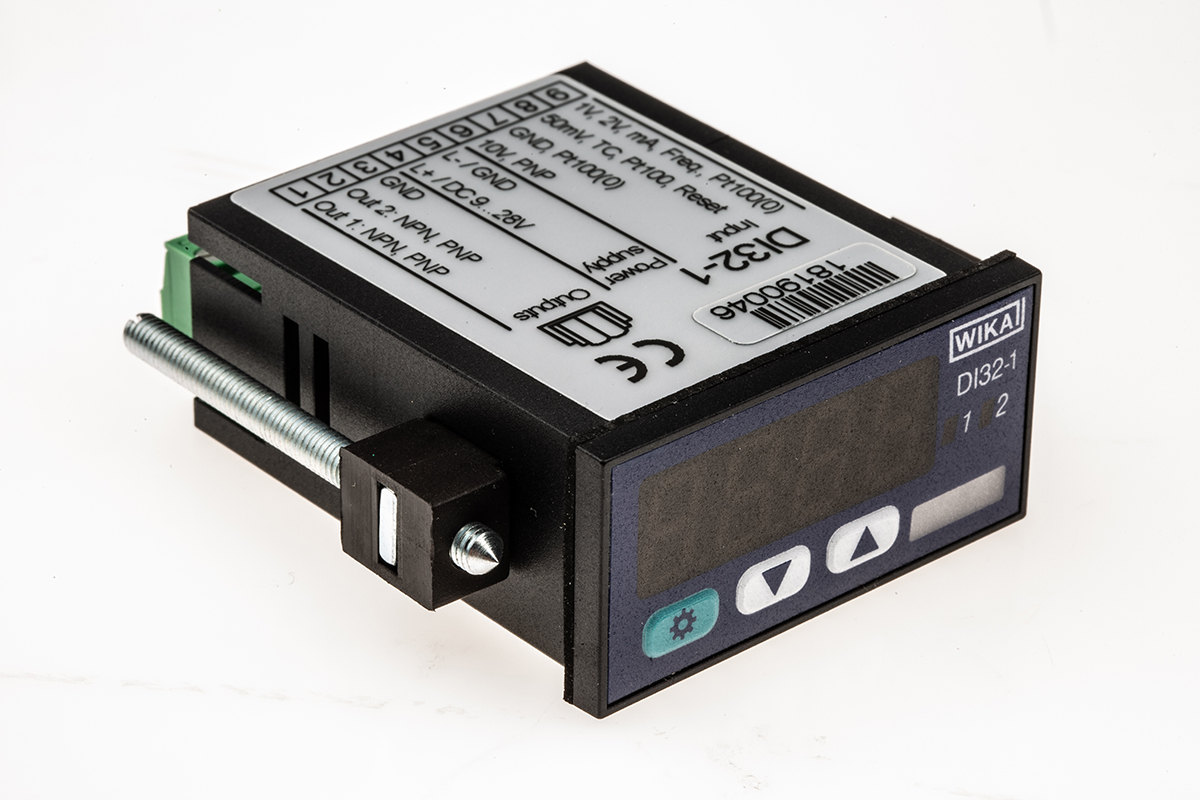

DI32-1
Approvals:
EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529, UL 94 V-0
Meter Type:
Electrical
Cutout Width:
45mm
Digit Height:
10 mm
Display Type:
LED
Cutout Height:
22.2mm
Number of Digits:
4
Measurement Range:
0 → 1 (Voltage V @ >10 kΩ), 0 → 10 (Voltage V @ >100 kΩ), 0 → 2 (Voltage V @ >10 kΩ), 0 → 50 (Voltage mV @ >10 kΩ)
Maximum Temperature:
+50°C
Minimum Measurement:
+80 (Thermocouple (Type B)) °C, 0 (Counter), 0 (Current mA @ 125 Ω), 0 (Frequency NPN) kHz, 0 (Frequency PNP) kHz, 0 (Frequency) kHz, 0 (Humidity) %RH, 0 (Speed) rpm, 0 (Voltage) V, -170 (Thermocouple (Type J)) °C, -200 (PT100 (3-Wire)) °C, -200 (PT1000 (2-Wire)) °C, -200 (Thermocouple (Type L)) °C, -270 (Thermocouple (Type E)) °C, -270 (Thermocouple (Type K)) °C, -270 (Thermocouple (Type N)) °C, -270 (Thermocouple (Type T)) °C, 4 (Current mA @ 125 Ω), -50 (PT100 (3-Wire)) °C, -50 (Thermocouple (Type R)) °C, -50 (Thermocouple (Type S)) °C
Minimum Temperature:
-20°C
Properties Measured:
Counter, Current, Frequency, Humidity, Speed, Temperature, Thermocouples, Voltage
