Minimum Continuity Resistance:
0.01Ω
Dimensions:
85 x 235 x 150mm
Power Source:
Battery
Continuity Test Current:
200mA
Width:
235mm
Test Type:
Continuity

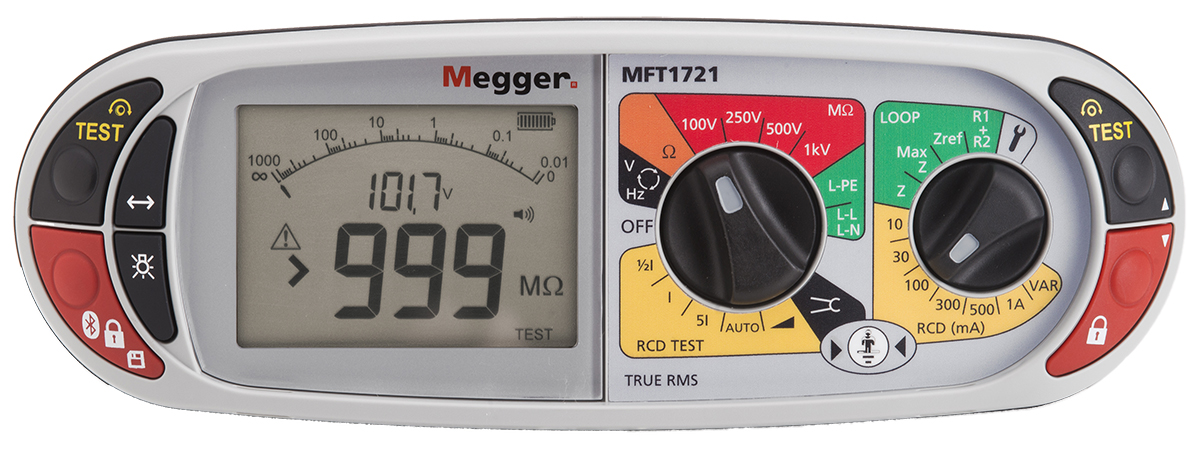

Model Number p:
MFT1721
Non-Tripping:
Yes
Loop Impedance Test Type:
2 Wire, 3 Wire
Earth Resistance Measurement:
Yes
Battery Type:
AA Alkaline
Maximum Continuity Resistance:
99.9kΩ
Maximum Operating Temperature:
+55°C
RCD Test Type:
A, AC, B, S
RCD Ramp Test:
Yes
IP Rating:
IP54
Maximum Voltage Measurement:
600V
Safety Category Level:
CAT III, CAT IV
Length:
85mm
Insulation Test Voltage:
100 V, 250 V, 500 V, 1000 V
Interface Type:
Wireless
Test Standards:
EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
Automatic RCD Test:
Yes
Display Type:
LCD
Weight:
1 (with Battery' Excluding Case)kg
Safety Category Voltage:
300 V, 600 V
Plug Type:
BS 1363, LT 300-EN-BS
Height:
150mm
Safety Category:
CAT III 600 V, CAT IV 300 V
Minimum Operating Temperature:
-10°C
