Dimensions:
196 x 96 x 60mm
Capacitance Measurement Resolution:
10pF
DC Current Measurement Resolution:
0.01µA dc
Temperature Measurement Resolution:
1°C
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
96mm
Battery Life:
150 h
AC Current Measurement Resolution:
0.01µA ac
Best Temperature Measurement Accuracy:
±2% + 2 °C
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number p:

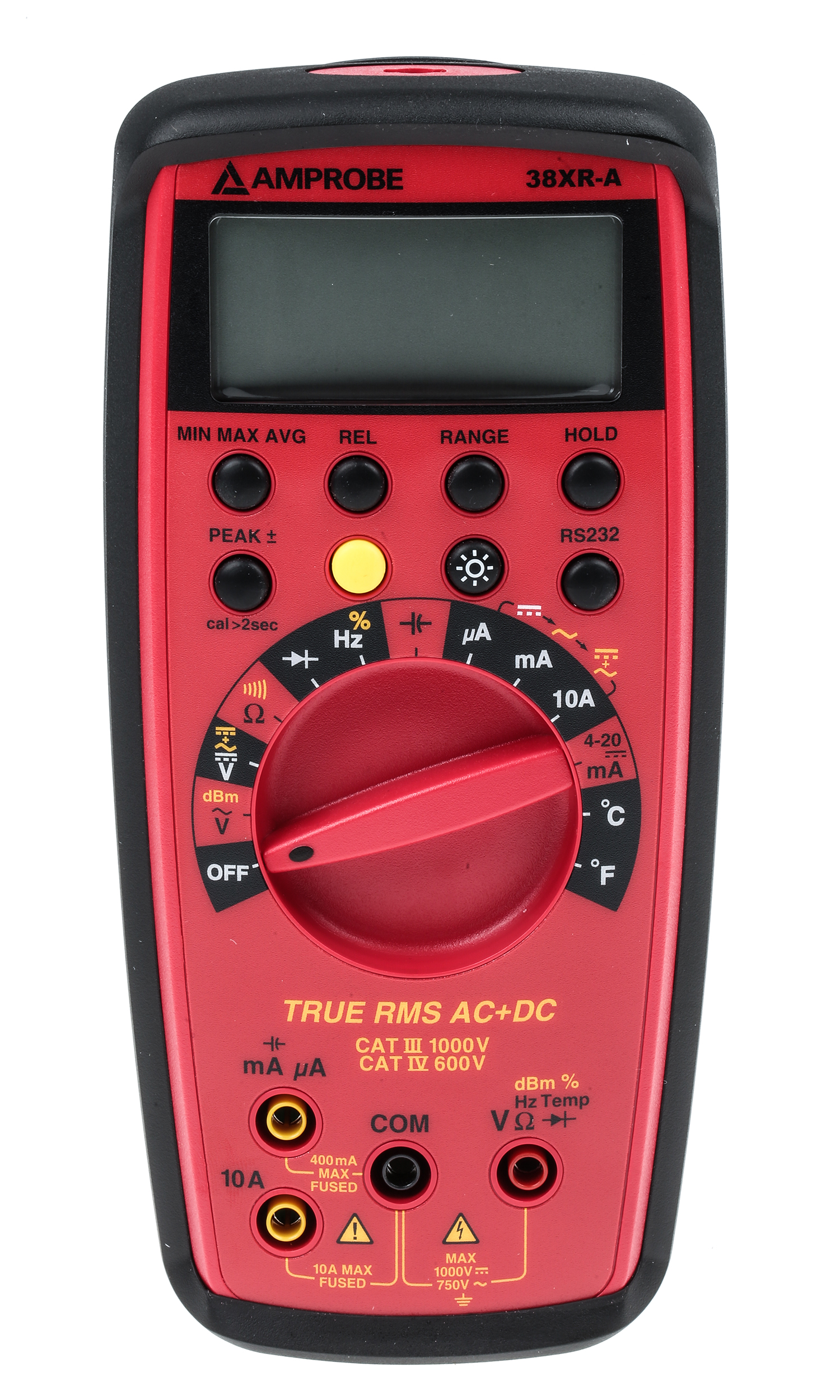

38XRA
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±2% + 10 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
2kHz
Absolute Maximum Capacitance Measurement:
400µF
Battery Type:
9V
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+45°C
Best Capacitance Measurement Accuracy:
±3% + 5 Digits
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT III, CAT IV
Length:
196mm
Absolute Maximum Temperature Measurement:
+1300°C
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±1.5% + 10 Digits
Weight:
400g
AC Voltage Measurement Resolution:
100µV ac
Best AC Current Accuracy:
±2.5% + 10 Digits
Safety Category Voltage:
600 V, 1000V
Multimeter Type:
Handheld
Height:
60mm
Best Resistance Measurement Accuracy:
±2% + 10 Digits
Best DC Voltage Accuracy:
±0.25% + 5 Digits
DC Voltage Measurement Resolution:
100µV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Decibel, Diode, Duty Cycle, Frequency, Resistance, Temperature
