Dimensions:
303.2 x 216.2 x 103.8mm
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
216.2mm
Battery Life:
10 yr
Best Temperature Measurement Accuracy:
+0.05 °C, +0.1 °C
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number p:

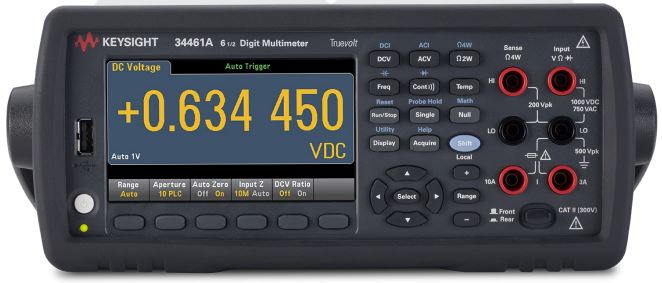

Truevolt 34461A
Best AC Voltage Accuracy:
±4 % +0.5
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
300kHz
Battery Type:
CR302
Absolute Maximum Resistance Measurement:
100MΩ
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT II
Length:
303.2mm
Absolute Maximum Temperature Measurement:
+150 °C, +600°C
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±0.05 % +0.01, ±0.12 % +0.01 %, ±0.15 % +0.01 %
Weight:
3.8kg
Best Resistance Measurement Accuracy:
±0.03 % +0.01, ±0.8 % +0.01
Safety Category Voltage:
300V
Multimeter Type:
Bench
Height:
103.8mm
Best AC Current Accuracy:
±0.15 % +0.04
Best DC Voltage Accuracy:
±0.002 % +0.0006, ±0.0035 % +0.001, ±0.0045 % +0.001, ±0.006 % +0.001
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
