Dimensions:
190 x 86.4 x 48.3mm
Best Capacitance Measurement Accuracy:
±2 %
Absolute Maximum DC Voltage Measurement:
600V dc
Width:
48.3mm
Best Temperature Measurement Accuracy:
±1 %
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number p:

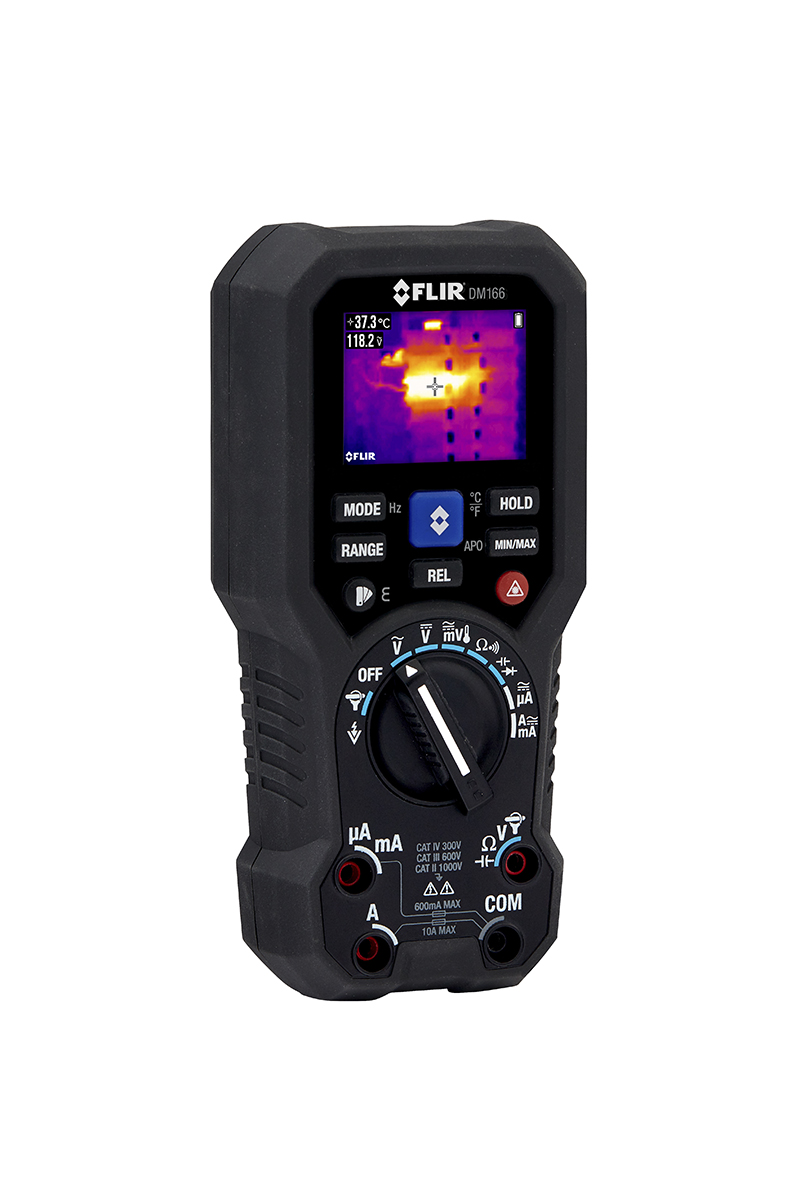

DM166
Best AC Voltage Accuracy:
±0.7 %
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
50kHz
Absolute Maximum Capacitance Measurement:
10mF
Battery Type:
AAA, LiPo
Absolute Maximum Resistance Measurement:
60MΩ
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III, CAT IV
Length:
86.4mm
Absolute Maximum Temperature Measurement:
+400 °C, +752°F
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±0.7 %
Weight:
428.3g
Best Resistance Measurement Accuracy:
±0.9 %
Safety Category Voltage:
300 V, 600V
Multimeter Type:
Handheld
Height:
190mm
Best AC Current Accuracy:
±1 %
Best DC Voltage Accuracy:
±0.3 %
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature, Thermal Imaging
Ratings:
CAT III 600V, CAT IV 300V
Style:
Handheld
HTSUS:
0000.00.0000
Functions, Extra:
Battery Test, Continuity, Diode Test
Type:
Digital (DMM)
Ranging:
Auto
Function:
Voltage, Current, Resistance, Capacitance, Temperature, Frequency
Includes:
Battery, Case
Response:
True RMS
Display Count:
6000
Package:
Bulk
standardLeadTime:
6 Weeks
Display Type:
LCD
Features:
Auto Off, Backlight, Hold, Min/Max/Ave, Relative
Series:
DM
