Width:
51.2mm
Height:
200mm
Length:
95mm
Weight:
620 (with Holster)g
True RMS:
Yes
Dimensions:
95 x 51.2 x 200mm
Battery Type:
1.5 V AA Alkaline (NEDA 15A)
Display Type:
Digital

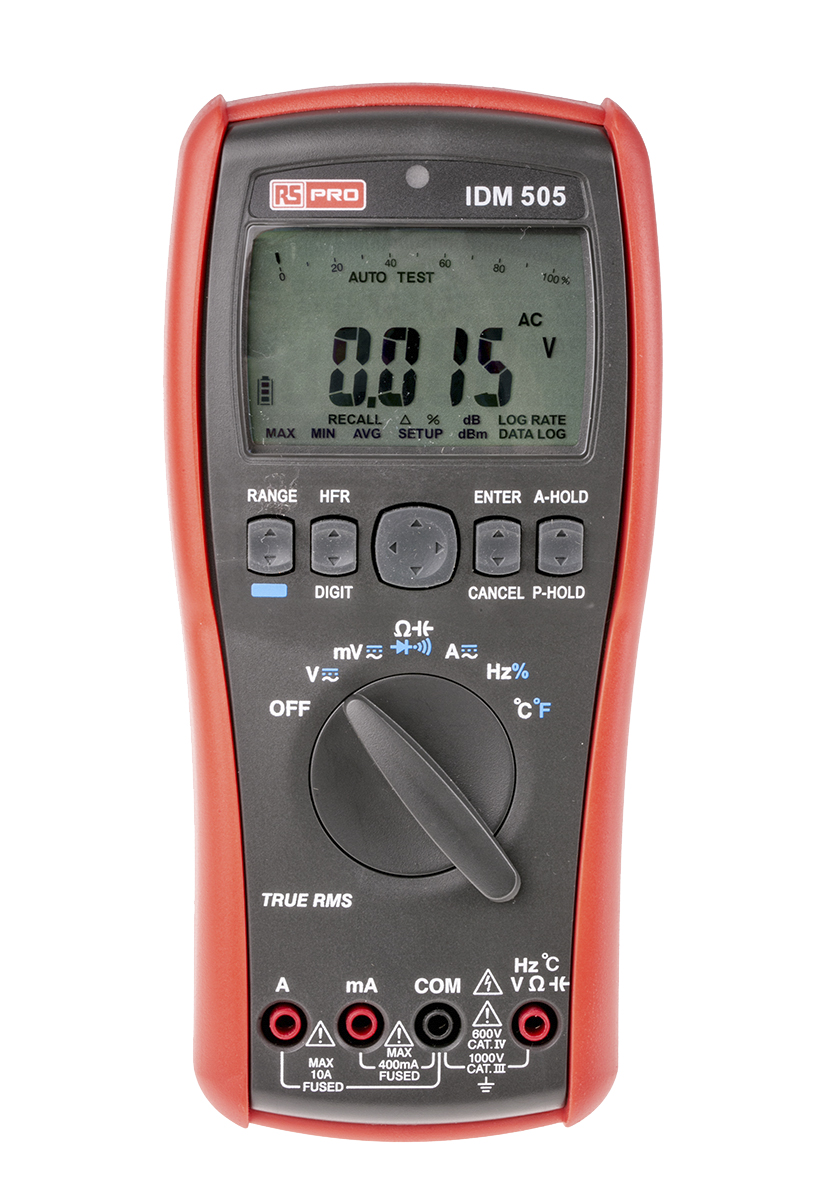

Model Number p:
IDM505
Multimeter Type:
Handheld
Maximum Frequency:
4MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±0.7 % + 80 Digit
Best AC Voltage Accuracy:
±0.4 % + 50 Digit
Best DC Current Accuracy:
±0.1 % + 4 Digit
Best DC Voltage Accuracy:
±0.015 % + 20 Digit
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
0.001mV ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
0.0001mV dc
Resistance Measurement Resolution:
10mΩ
Capacitance Measurement Resolution:
0.01nF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±0.025 % + 30 Digit
Best Capacitance Measurement Accuracy:
±0.8 % + 2 Digit
Best Temperature Measurement Accuracy:
±1 % + 1 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum Capacitance Measurement:
40mF
Absolute Maximum Temperature Measurement:
+1200°C
