Dimensions:
155 x 75 x 55mm
Capacitance Measurement Resolution:
0.01nF
DC Current Measurement Resolution:
0.001A dc
Temperature Measurement Resolution:
0.1°C
Absolute Maximum DC Voltage Measurement:
600V dc
Width:
75mm
Battery Life:
100 h
AC Current Measurement Resolution:
0.001A ac
Best Temperature Measurement Accuracy:
±2 % + 5 °C
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac

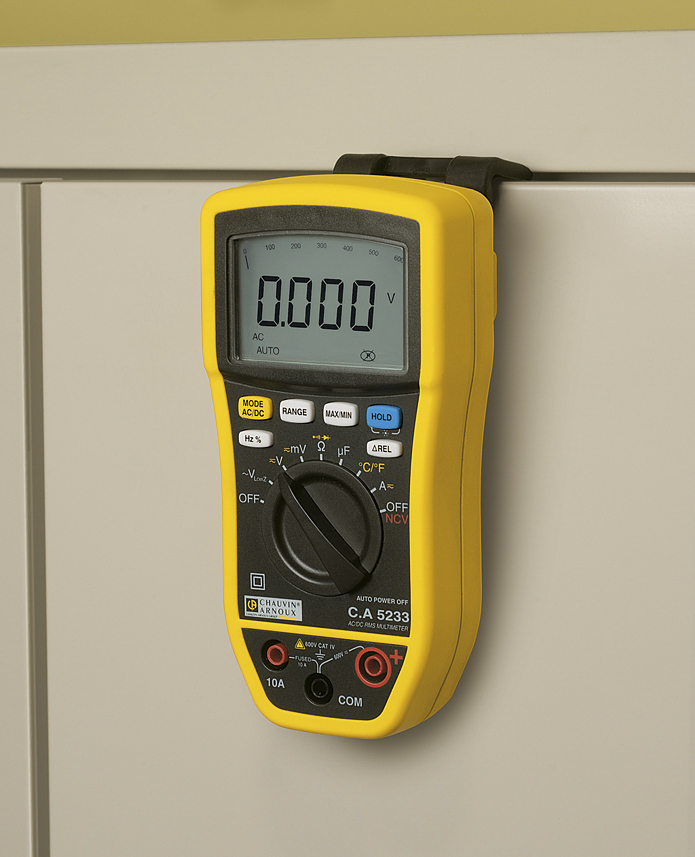

Model Number p:
CA 5233
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±2 % + 3 digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
3kHz
Absolute Maximum Capacitance Measurement:
1mF
Battery Type:
9 V, IEC 6LR61
Absolute Maximum Resistance Measurement:
60MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±3.5 % + 4 digits
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT III, CAT IV
Length:
55mm
Absolute Maximum Temperature Measurement:
+760°C
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±1.5 % + 3 digits
Weight:
320g
AC Voltage Measurement Resolution:
0.01mV ac
Best AC Current Accuracy:
±2 % + 3 Digits
Safety Category Voltage:
CAT III 600V, CAT IV 600V
Multimeter Type:
Handheld
Height:
155mm
Best Resistance Measurement Accuracy:
±0.3 % + 4 digits
Best DC Voltage Accuracy:
±0.2 % + 2 digits
DC Voltage Measurement Resolution:
0.01mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, NCV Non contact voltage, Resistance, Temperature
