Dimensions:
78 x 42.5 x 165mm
DC Current Measurement Resolution:
0.1µA dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
42.5mm
Battery Life:
150 h
AC Current Measurement Resolution:
0.1µA ac
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac

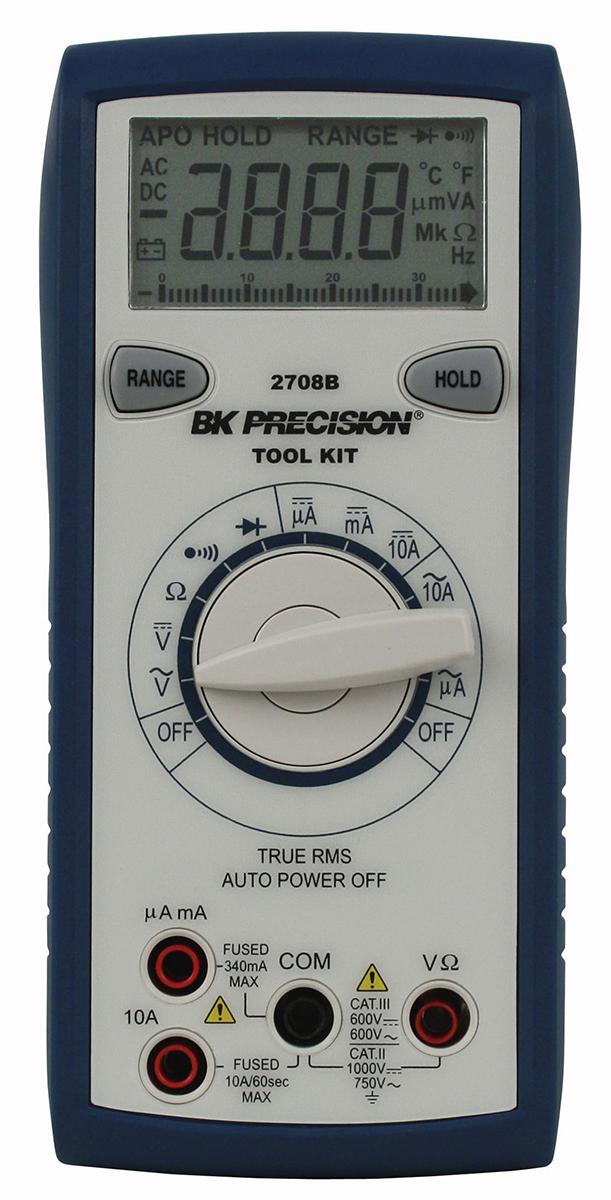

Model Number p:
BK2708B
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±2% + 8 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
500Hz
Battery Type:
9V
Absolute Maximum Resistance Measurement:
34MΩ
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT II, CAT III
Length:
78mm
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±3% + 3 Digits
Weight:
285g
AC Voltage Measurement Resolution:
1mV ac
Best AC Current Accuracy:
±3.5% + 10 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Multimeter Type:
Handheld
Height:
165mm
Best Resistance Measurement Accuracy:
±5% + 5 Digits
Best DC Voltage Accuracy:
±1% + 2 Digits
DC Voltage Measurement Resolution:
0.1mV dc
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
