Dimensions:
90 x 40 x 198mm
Capacitance Measurement Resolution:
1pF
DC Current Measurement Resolution:
10nA dc
Temperature Measurement Resolution:
0.1 °C, 0.1°F
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
40mm
AC Current Measurement Resolution:
10nA ac
Best Temperature Measurement Accuracy:
±2 % + 3°C, ±2 % + 6°F
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number p:

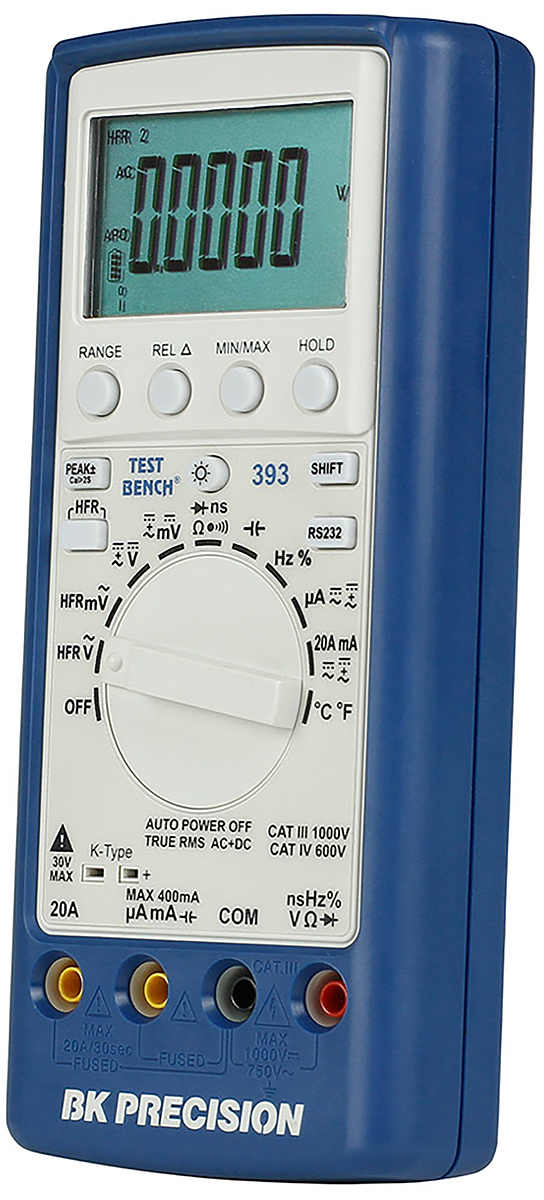

BK393
Resistance Measurement Resolution:
10mΩ
Best AC Voltage Accuracy:
±1.5% + 20 Digits
Absolute Maximum AC Current Measurement:
20A ac
Maximum Frequency:
1kHz
Absolute Maximum Capacitance Measurement:
6mF
Battery Type:
9V
Absolute Maximum Resistance Measurement:
60MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±5% +10 Digits
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT III, CAT IV
Length:
90mm
Absolute Maximum Temperature Measurement:
+1300 °C, +2372°F
Absolute Maximum DC Current Measurement:
20A dc
Display Type:
Digital
Best DC Current Accuracy:
±2% + 10 Digits
Weight:
400g
AC Voltage Measurement Resolution:
0.01mV ac
Best AC Current Accuracy:
±2.5% + 20 Digits
Safety Category Voltage:
600 V, 1000V
Multimeter Type:
Handheld
Height:
198mm
Best Resistance Measurement Accuracy:
±3% + 20 Digits
Best DC Voltage Accuracy:
±0.08% + 5 Digits
DC Voltage Measurement Resolution:
0.01mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
