Dimensions:
293.75 x 260.27 x 107.21mm
Capacitance Measurement Resolution:
0.001nF
DC Current Measurement Resolution:
0.01µA dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
260.27mm
AC Current Measurement Resolution:
0.001mA ac
Best Temperature Measurement Accuracy:
±0.16 (RTD) %, ±0.5 (Type E) %, ±0.5 (Type J) %, ±0.5 (Type K) %, ±0.5 (Type N) %, ±0.5 (Type R) %, ±0.5 (Type T) %, ±0.6 (Type S) %, ±0.76 (Type B) %
True RMS:
Yes
Model Number p:

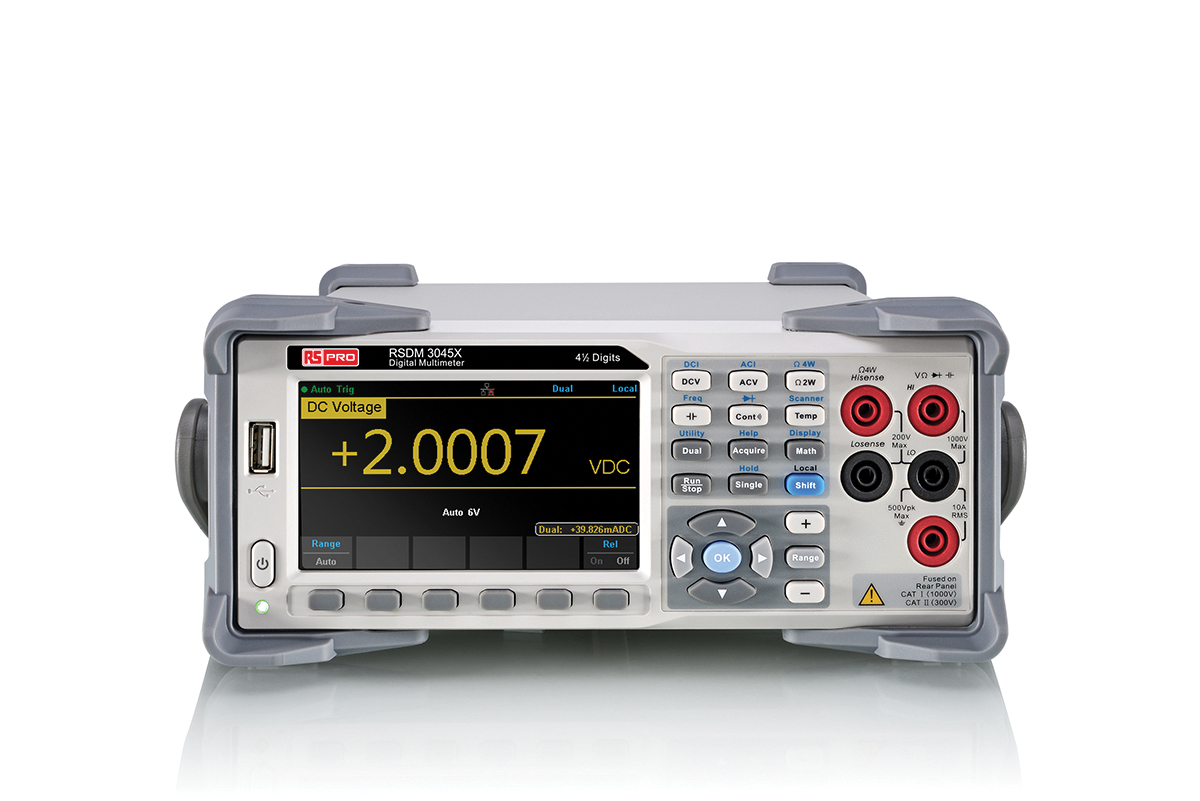

RSDM3045X
Resistance Measurement Resolution:
10mΩ
Best AC Voltage Accuracy:
±3% + 40 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
500kHz
Absolute Maximum Capacitance Measurement:
10mF
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum Resistance Measurement:
100MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±2% + 50 Digits
Minimum Operating Temperature:
0°C
AC Voltage Measurement Resolution:
0.01mV ac
Length:
293.75mm
Calibrated:
UKAS
Absolute Maximum Temperature Measurement:
+1000 (Type E) °C, +1200 (Type J) °C, +1300 (Type N) °C, +1370 (Type K) °C, +1760 (Type R & S) °C, +1820 (Type B) °C, +400 (Type T) °C, +660 (RTD) °C
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±0.25% + 4 Digits
Weight:
3.8kg
Best AC Current Accuracy:
±2.5% + 25 Digits
Multimeter Type:
Bench
Height:
107.21mm
Best Resistance Measurement Accuracy:
±1.75% + 3 Digits
Best DC Voltage Accuracy:
±0.02% + 6 Digits
DC Voltage Measurement Resolution:
0.01mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
