Width:
170mm
Height:
50mm
Length:
79mm
Weight:
342g
True RMS:
Yes
Dimensions:
170 x 79 x 50mm
Connectivity:
Bluetooth
Display Type:
Digital
Model Number p:

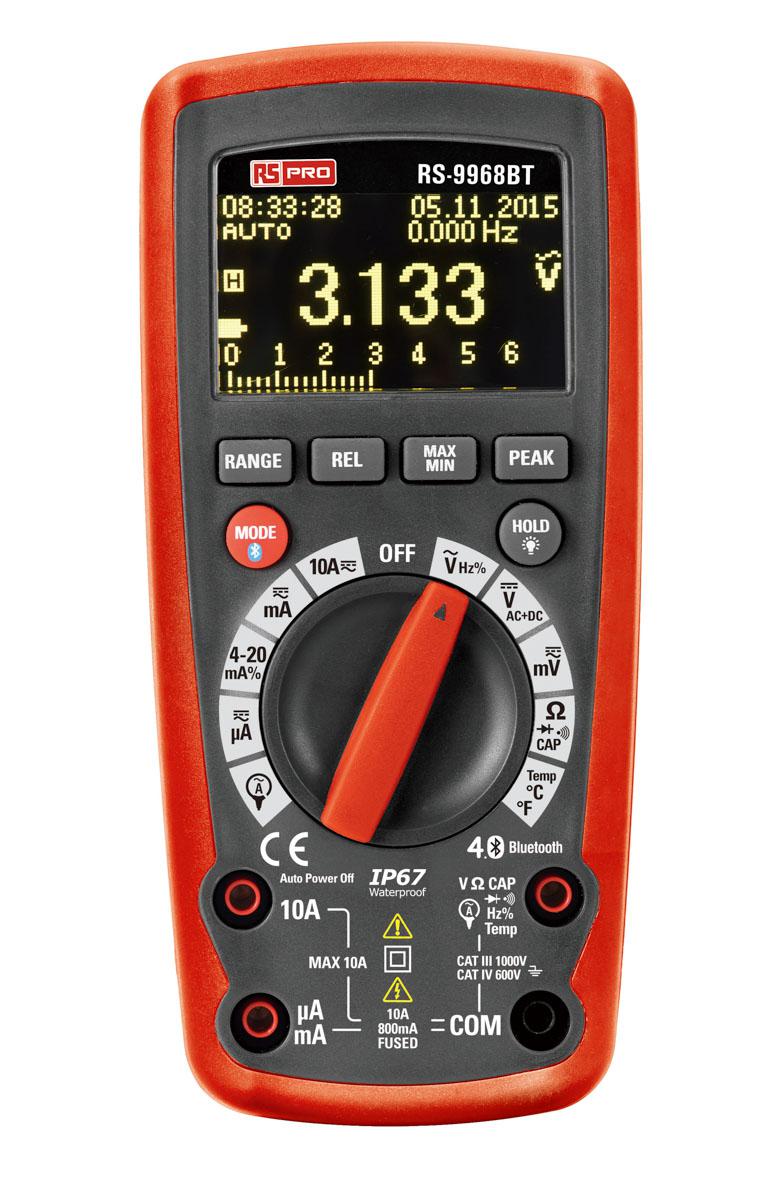

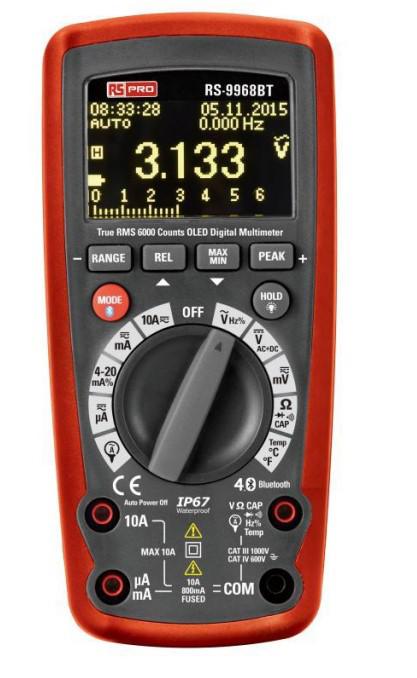

RS-9968BT
Multimeter Type:
Handheld
Safety Category:
CAT III 1000 V, CAT IV 600V
Maximum Frequency:
10MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±2.0%+5
Best AC Voltage Accuracy:
±1.0%+40
Best DC Current Accuracy:
±1.8%+5
Best DC Voltage Accuracy:
±0.9%+4
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1 uA
AC Voltage Measurement Resolution:
100mV
DC Current Measurement Resolution:
0.1 uA
DC Voltage Measurement Resolution:
100mV
Resistance Measurement Resolution:
0.1Ω
Capacitance Measurement Resolution:
0.01nF
Temperature Measurement Resolution:
-20 ℃→1000 ℃
Best Resistance Measurement Accuracy:
±1%+5
Best Capacitance Measurement Accuracy:
±2.0%+10
Best Temperature Measurement Accuracy:
±1.5 °C+3 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60 MΩ
Absolute Maximum Capacitance Measurement:
60mF
Absolute Maximum Temperature Measurement:
+1000°C
