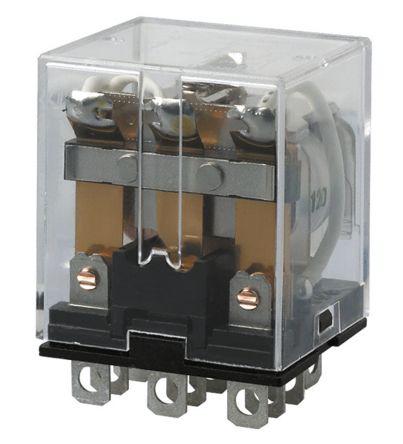

Omron 3PDT Surface Mount Non-Latching Relay, 120V ac Coil, 10 A

LY3F-AC120 Omron 3PDT Surface Mount Non-Latching Relay, 120V ac Coil, 10 A
Omron

Product Information

Dimensions:
32 x 36 x 44mm
Coil Voltage:
120 V ac
Application:
General Purpose, Power
Coil Resistance:
2.3 kΩ
Life:
200000 (Electrical) Operations, 50000000 (Mechanical) Operations
Coil Power:
2W
Maximum Switching Voltage DC:
125V
Maximum Switching Power DC:
240 W
Isolation Coil To Contact:
2kV ac
Maximum Operating Temperature:
+55°C
Terminal Type:
PCB Pin
Maximum Switching Current AC:
10 A
Operating Temperature Range:
-25 → +55°C
Contact Configuration:
3PDT
Depth:
36mm
Mounting Type:
Surface Mount
Length:
32mm
Height:
44mm
Maximum Switching Current DC:
10 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-25°C
Maximum Switching Power AC:
1.1 kVA
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is 3PDT Surface Mount Non-Latching Relay 120V ac Coil 10 A manufactured by Omron. The manufacturer part number is LY3F-AC120. The given dimensions of the product include 32 x 36 x 44mm. The coil voltage of the product is 120 v ac. It holds up to 2.3 kω coil resistance. Robust coil power of 2w. It has a maximum operating temperature of +55°c. The terminal is a pcb pin type. The product comes in 36mm depth. The product is available in surface mount configuration. Its accurate length is 32mm. In addition, the height is 44mm. Whereas, the minimum operating temperature of the product is -25°c. The product is made from sturdy silver alloy materials.
