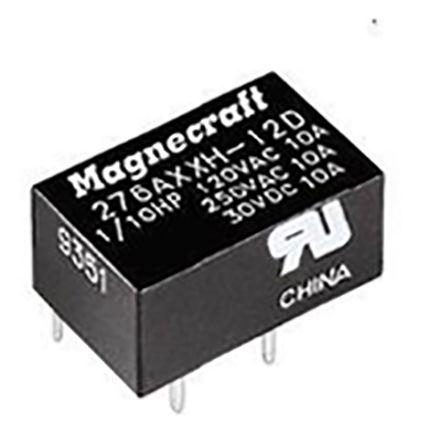

Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 7 A

276XAXH-12D Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 7 A
276XAXH-12D Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 7 A
Schneider Electric

Product Information

Life:
100000 (Electrical) Operations, 5000000 (Mechanical) Operations
Maximum Switching Voltage DC:
30V
Dimensions:
20.49 x 12.7 x 10mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-40 → +55°C
Coil Power:
200mW
Switching Current:
7 A
Coil Voltage:
12 V dc
Depth:
12.7mm
Height:
10mm
Application:
Power
Length:
20.49mm
Maximum Switching Voltage AC:
240V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1/10 hp
Isolation Coil To Contact:
2kV ac
Contact Material:
Silver Alloy
Maximum Operating Temperature:
+55°C
Terminal Type:
PCB Pin
Contact Configuration:
SPDT
Coil Resistance:
720 Ω
Checking for live stock

This is SPDT PCB Mount Non-Latching Relay 12V dc Coil 7 A manufactured by Schneider Electric. The manufacturer part number is 276XAXH-12D. The given dimensions of the product include 20.49 x 12.7 x 10mm. The product is available in pcb mount configuration. Robust coil power of 200mw. The coil voltage of the product is 12 v dc. The product comes in 12.7mm depth. In addition, the height is 10mm. Its accurate length is 20.49mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy silver alloy materials. It has a maximum operating temperature of +55°c. The terminal is a pcb pin type. It holds up to 720 ω coil resistance.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 276XAXH-12D on website for other similar products.
We accept all major payment methods for all products including ET13942074. Please check your shopping cart at the time of order.
You can order Schneider Electric brand products with 276XAXH-12D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Non-Latching Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 7 A. You can also check on our website or by contacting our customer support team for further order details on Schneider Electric SPDT PCB Mount Non-Latching Relay, 12V dc Coil, 7 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13942074 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Schneider Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number 276XAXH-12D.
Yes. You can also search 276XAXH-12D on website for other similar products.
Yes. We ship 276XAXH-12D Internationally to many countries around the world.
