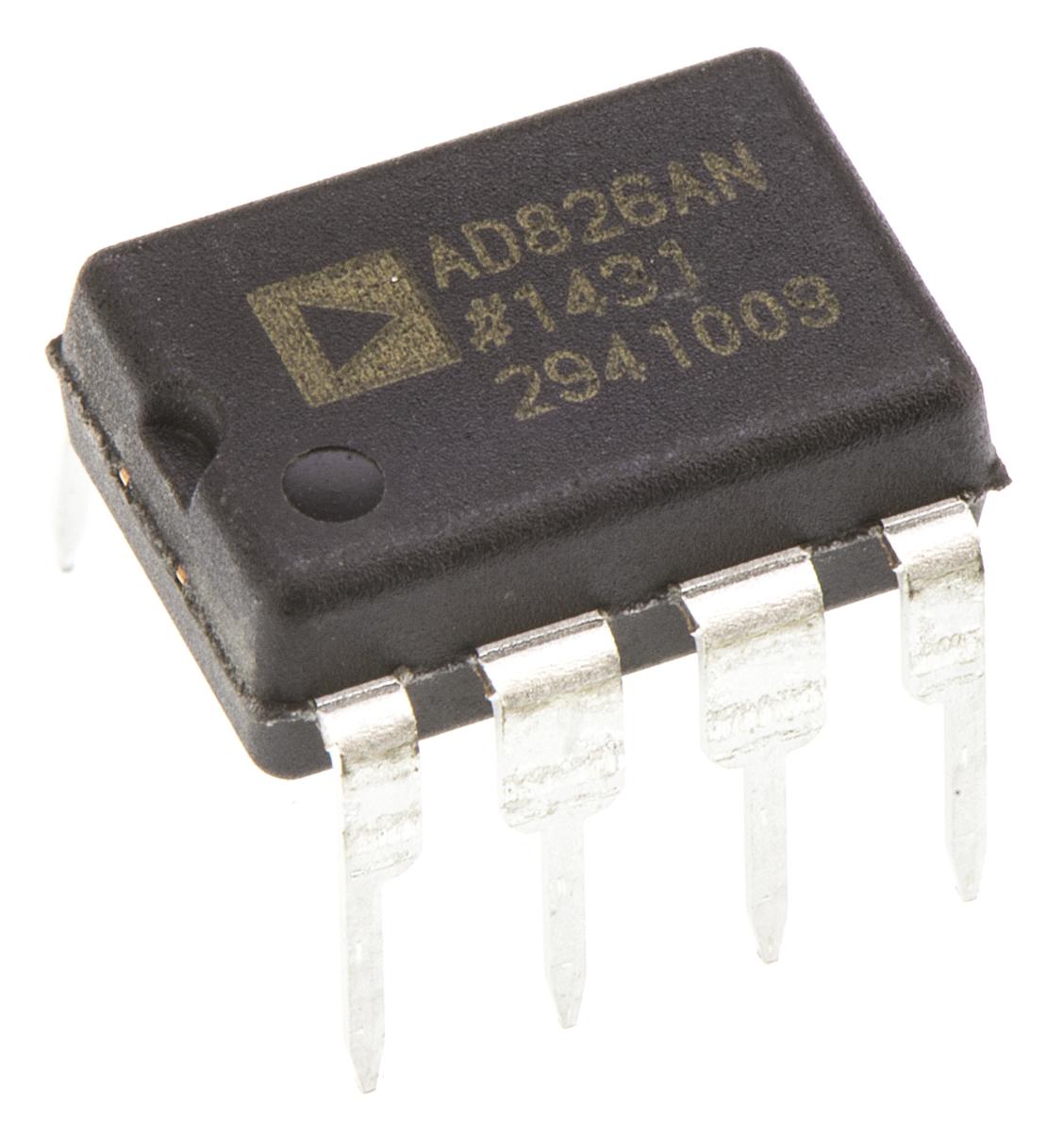

Analog Devices AD826ANZ, Op Amp, 29MHz, 9 → 28 V, 8-Pin PDIP

AD826ANZ Analog Devices , Op Amp, 29MHz, 9 → 28 V, 8-Pin PDIP
AD826ANZ
Analog Devices

Product Information

Typical Dual Supply Voltage:
±15 V, ±5 V
Typical Input Voltage Noise Density:
15nV/√Hz
Typical Gain Bandwidth Product:
29MHz
Dimensions:
9.91 x 6.35 x 3.3mm
Mounting Type:
Through Hole
Typical Slew Rate:
200V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Rail to Rail:
No
Height:
3.3mm
Typical Single Supply Voltage:
9 → 28 V
Width:
6.35mm
Length:
9.91mm
Package Type:
PDIP
Minimum Operating Temperature:
-40 °C
Amplifier Type:
General Purpose
Typical Voltage Gain:
72 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Op Amp 29MHz 9 → 28 V 8-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD826ANZ. The given dimensions of the product include 9.91 x 6.35 x 3.3mm. The product is available in through hole configuration. In addition, the height is 3.3mm. Furthermore, the product is 6.35mm wide. Its accurate length is 9.91mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a general purpose amplifier. It has a maximum operating temperature of +85 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
