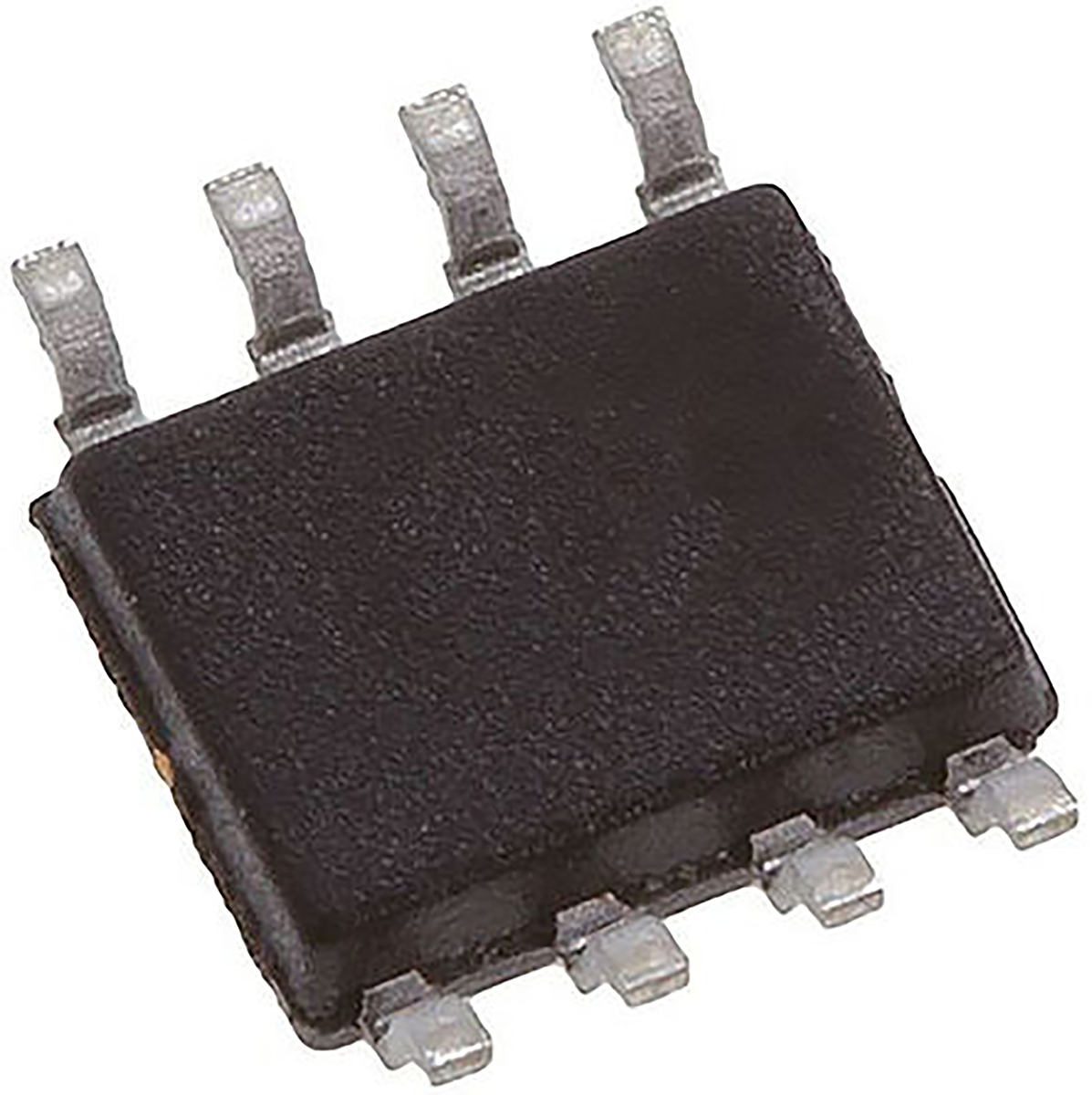

Analog Devices AD826ARZ, Op Amp, 29MHz, 9 → 28 V, 8-Pin SOIC

AD826ARZ Analog Devices , Op Amp, 29MHz, 9 → 28 V, 8-Pin SOIC
AD826ARZ
Analog Devices

Product Information

Typical Dual Supply Voltage:
±15 V, ±5 V
Typical Input Voltage Noise Density:
15nV/√Hz
Typical Gain Bandwidth Product:
29MHz
Dimensions:
5.01 x 3.99 x 2.34mm
Mounting Type:
Surface Mount
Typical Slew Rate:
200V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Rail to Rail:
No
Height:
2.34mm
Typical Single Supply Voltage:
9 → 28 V
Width:
3.99mm
Length:
5.01mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Amplifier Type:
General Purpose
Typical Voltage Gain:
72 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Op Amp 29MHz 9 → 28 V 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD826ARZ. The given dimensions of the product include 5.01 x 3.99 x 2.34mm. The product is available in surface mount configuration. In addition, the height is 2.34mm. Furthermore, the product is 3.99mm wide. Its accurate length is 5.01mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a general purpose amplifier. It has a maximum operating temperature of +85 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
