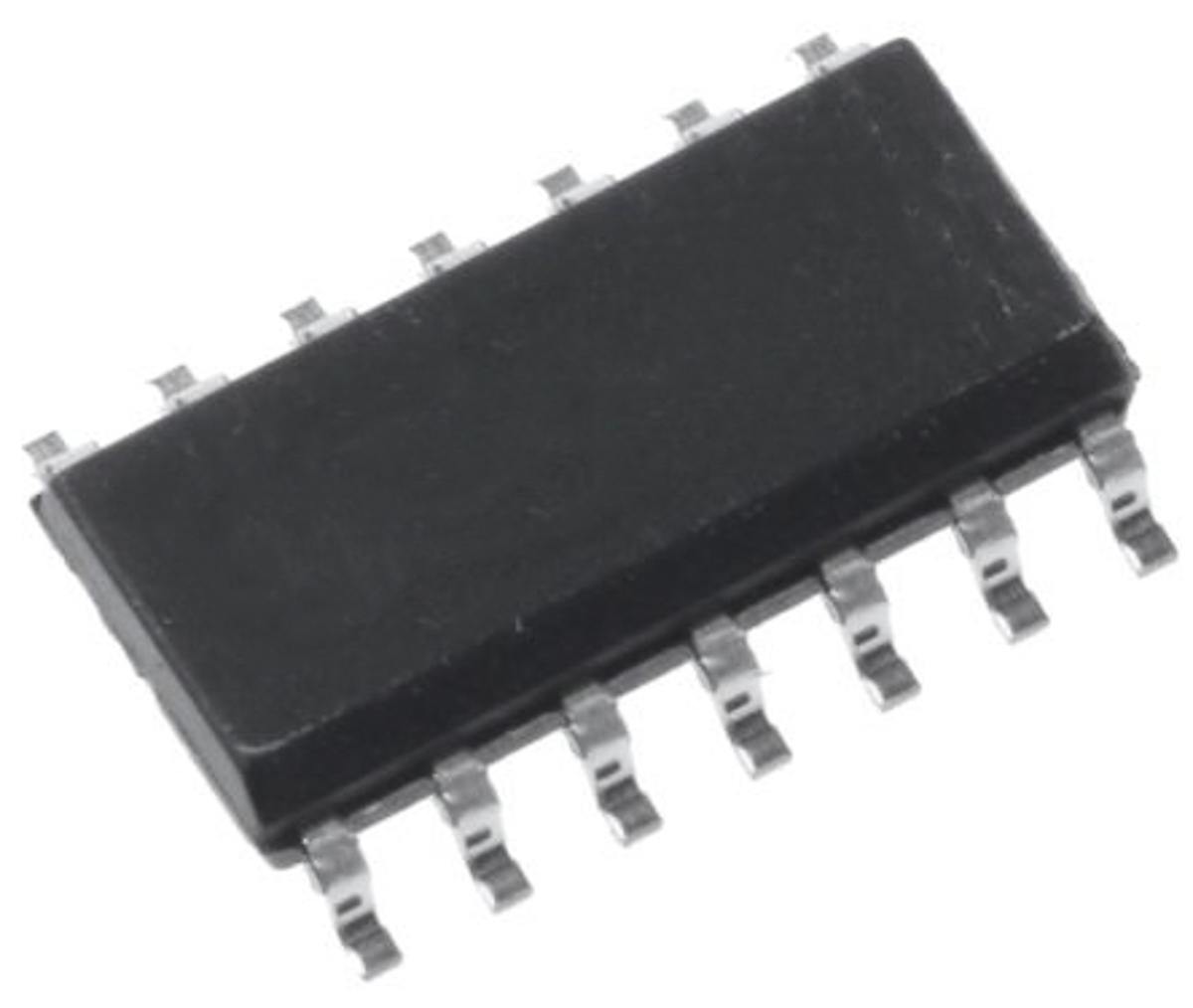

Analog Devices AD8644ARZ, Quad Op Amp, 5.5MHz Rail-Rail, 6 → 15 V, 14-Pin SOIC

AD8644ARZ Analog Devices , Quad Op Amp, 5.5MHz Rail-Rail, 6 → 15 V, 14-Pin SOIC
Analog Devices

Product Information

Dimensions:
8.75 x 4 x 1.5mm
Typical Slew Rate:
7.5V/µs
Rail to Rail:
Rail to Rail Input/Output
Width:
4mm
Maximum Operating Frequency:
10 kHz
Input Offset Current:
200nA
Power Supply Type:
Single
Number of Channels per Chip:
3
Output Type:
Rail to Rail
Package Type:
SOIC
Typical Voltage Gain:
150 V/mV
Maximum Operating Temperature:
+85 °C
Typical Gain Bandwidth Product:
5.5MHz
Length:
8.75mm
Pin Count:
14
Offset Voltage:
3mV
Typical Input Voltage Noise Density:
12nV/√Hz
Mounting Type:
Surface Mount
Output Current:
70 mA
Input Voltage Range:
5 → 18 V
Typical Single Supply Voltage:
5 → 18 V
Height:
1.5mm
Minimum Operating Temperature:
-20 °C
Amplifier Type:
Operational Amplifier
Maximum Input Voltage:
18 V
Minimum Input Voltage:
5 V
RoHs Compliant
Checking for live stock

This is Quad Op Amp 5.5MHz Rail-Rail 6 → 15 V 14-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD8644ARZ. The given dimensions of the product include 8.75 x 4 x 1.5mm. Furthermore, the product is 4mm wide. Furthermore, it has arail to rail output. It has a maximum operating temperature of +85 °c. Its accurate length is 8.75mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -20 °c. It is a sort of a operational amplifier amplifier.

pdf icon
Datasheet AD8644ARZ(Technical Reference)
