FET INPT, SINGLE SPLY AMP

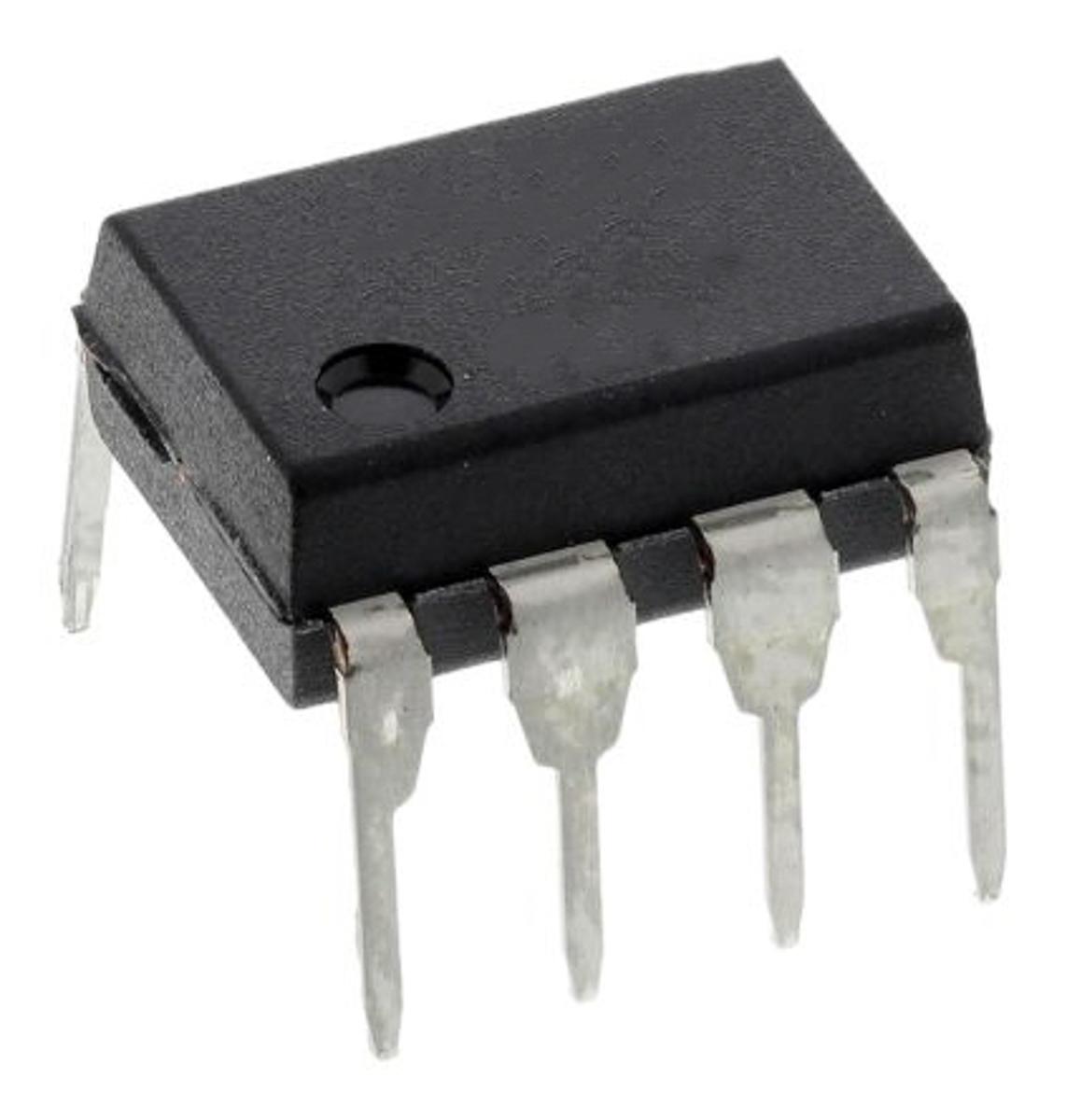

AD820ANZ FET INPT, SINGLE SPLY AMP
AD820ANZ FET INPT, SINGLE SPLY AMP
Analog Devices

Product Information

Dimensions:
10.16 x 7.11 x 4.95mm
Typical Slew Rate:
3V/µs
Typical Gain Bandwidth Product:
1.8MHz
Width:
7.11mm
Maximum Operating Frequency:
10 kHz
Input Offset Current:
20pA
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Output Type:
Rail to Rail, Swing
Package Type:
PDIP
Typical Voltage Gain:
1000 V/mV
Maximum Operating Temperature:
+85 °C
Length:
10.16mm
Pin Count:
8
Offset Voltage:
0.8mV
Typical Dual Supply Voltage:
±2.5 to ±15V
Typical Input Voltage Noise Density:
25nV/√Hz
Mounting Type:
Through Hole
Output Current:
15 mA
Input Voltage Range:
5 → 30 V
Typical Single Supply Voltage:
5 → 30 V
Height:
4.95mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Power
Maximum Input Voltage:
30 V
Minimum Input Voltage:
5 V
RoHs Compliant
Checking for live stock

This is FET INPT SINGLE SPLY AMP manufactured by Analog Devices. The manufacturer part number is AD820ANZ. The given dimensions of the product include 10.16 x 7.11 x 4.95mm. Furthermore, the product is 7.11mm wide. Furthermore, it has arail to rail, swing output. It has a maximum operating temperature of +85 °c. Its accurate length is 10.16mm. The product is available in through hole configuration. In addition, the height is 4.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low power amplifier.

pdf icon
Datasheet AD820ANZ(Technical Reference)
