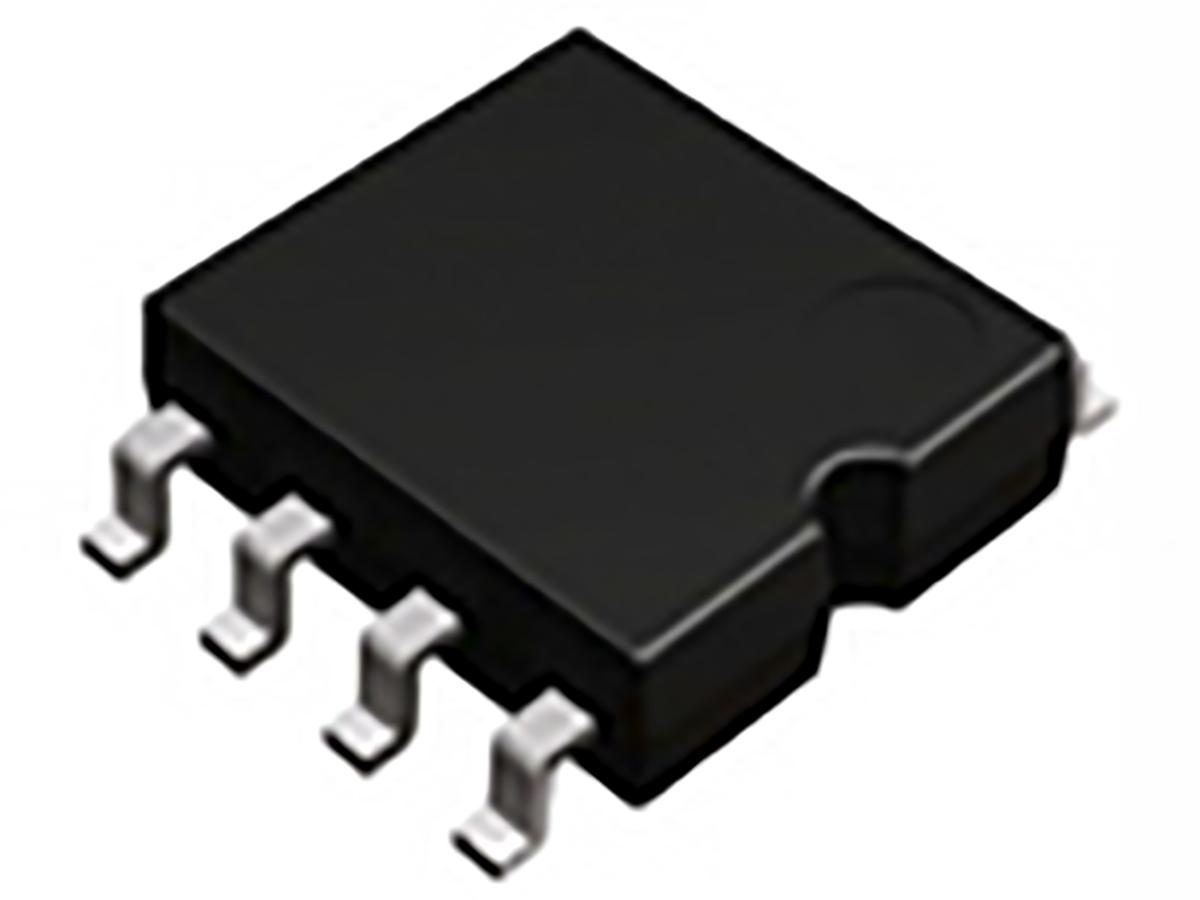

BD7562SF-E2 ROHM, CMOS, Op Amps 1 kHz, 5 → 14.5 V, 8-Pin SOP

BD7562SF-E2 ROHM, CMOS, Op Amps 1 kHz, 5 → 14.5 V, 8-Pin SOP
ROHM

Product Information

Dimensions:
5 x 4.4 x 1.5mm
Typical Slew Rate:
0.9V/µs
Typical Gain Bandwidth Product:
1MHz
Width:
4.4mm
Maximum Operating Frequency:
1 kHz
Input Offset Current:
1pA
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Output Type:
Swing
Package Type:
SOP
Typical Voltage Gain:
95 dB
Maximum Operating Temperature:
105 °C
Length:
5mm
Pin Count:
8
Offset Voltage:
9mV
Typical Dual Supply Voltage:
±2.5 to ±7.25V
Mounting Type:
Surface Mount
Output Current:
14 ( Sink) mA, 8 ( Source) mA
Input Voltage Range:
±2.5 → ±7.25 V, 5 → 14.5 V
Typical Single Supply Voltage:
5 → 14.5 V
Height:
1.5mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
CMOS
Maximum Input Voltage:
14.5 V, ±7.25 V
Minimum Input Voltage:
5 V, ±2.5 V
RoHs Compliant
Checking for live stock

This is CMOS Op Amps 1 kHz 5 → 14.5 V 8-Pin SOP manufactured by ROHM. The manufacturer part number is BD7562SF-E2. The given dimensions of the product include 5 x 4.4 x 1.5mm. Furthermore, the product is 4.4mm wide. Furthermore, it has aswing output. It has a maximum operating temperature of 105 °c. Its accurate length is 5mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a cmos amplifier.

pdf icon
Datasheet BD7562SF-E2(Technical Reference)
