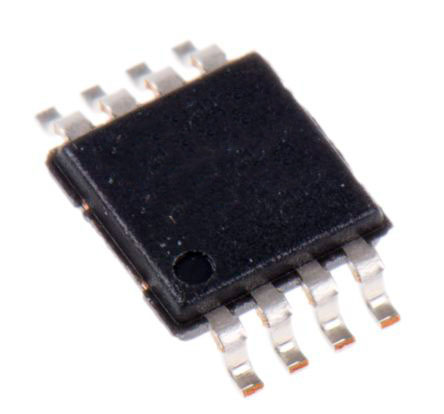

MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP

MCP6V51-E-MS MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP
Microchip

Product Information

Dimensions:
3 x 3 x 0.95mm
Typical Slew Rate:
1.2V/µs
Typical Gain Bandwidth Product:
2MHz
Width:
3mm
Maximum Operating Frequency:
1 kHz
Power Supply Type:
Single
Number of Channels per Chip:
1
Output Type:
Rail to Rail
Package Type:
MSOP
Typical Voltage Gain:
164 dB
Maximum Operating Temperature:
+125 °C
Length:
3mm
Pin Count:
8
Offset Voltage:
±15µV
Typical Input Voltage Noise Density:
10.2nV/√Hz
Mounting Type:
Surface Mount
Output Current:
±50 mA
Input Voltage Range:
4.5 → 45 V
Typical Single Supply Voltage:
4.5 → 45 V
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Zero Drift
Maximum Input Voltage:
45 V
Minimum Input Voltage:
4.5 V
RoHs Compliant
Checking for live stock

This is Zero Drift Op Amps 2MHz 1 kHz 4.5 → 45 V 8-Pin MSOP manufactured by Microchip. The manufacturer part number is MCP6V51-E/MS. The given dimensions of the product include 3 x 3 x 0.95mm. Furthermore, the product is 3mm wide. Furthermore, it has arail to rail output. It has a maximum operating temperature of +125 °c. Its accurate length is 3mm. The product is available in surface mount configuration. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a zero drift amplifier.

pdf icon
Datasheet MCP6V51-E/MS(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MCP6V51-E/MS on website for other similar products.
We accept all major payment methods for all products including ET18606342. Please check your shopping cart at the time of order.
You can order Microchip brand products with MCP6V51-E/MS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Op Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP. You can also check on our website or by contacting our customer support team for further order details on MCP6V51-E/MS Microchip, Zero Drift, Op Amps, 2MHz 1 kHz, 4.5 → 45 V, 8-Pin MSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18606342 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number MCP6V51-E/MS.
Yes. You can also search MCP6V51-E/MS on website for other similar products.
Yes. We ship MCP6V51-E/MS Internationally to many countries around the world.
