Typical Input Voltage Noise Density:
32nV/√Hz
Typical Gain Bandwidth Product:
4.5MHz
Dimensions:
5.1 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Typical Slew Rate:
13V/µs
Power Supply Type:
Single
Number of Channels per Chip:
4
Rail to Rail:
No
Maximum Operating Frequency:
1 MHz
Height:
1.05mm
Typical Single Supply Voltage:
3 → 44 V
Width:
4.5mm
Length:
5.1mm

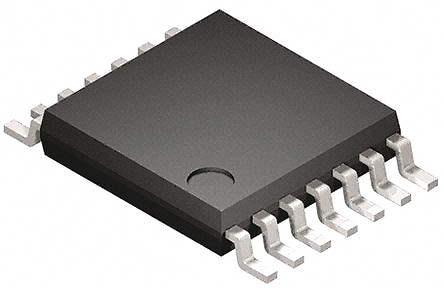

Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Typical Voltage Gain:
100 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
14
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
30 mA
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
Current - Input Bias:
100 nA
Voltage - Input Offset:
500 µV
Voltage - Supply Span (Max):
44 V
Voltage - Supply Span (Min):
3 V
REACH Status:
REACH Unaffected
Output Type:
-
Current - Supply:
1.9mA (x4 Channels)
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
13V/µs
standardLeadTime:
31 Weeks
Number of Circuits:
4
Gain Bandwidth Product:
4.5 MHz
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
14-TSSOP
Amplifier Type:
General Purpose
Base Product Number:
MC33074
ECCN:
EAR99
