Dimensions:
3 x 1.5 x 1mm
Typical Slew Rate:
0.4V/µs
Typical Gain Bandwidth Product:
900kHz
Width:
1.5mm
Maximum Operating Frequency:
1 kHz
Input Offset Current:
150nA
Power Supply Type:
Single
Number of Channels per Chip:
1
Output Type:
Push-Pull
Package Type:
TSOP
Typical Voltage Gain:
100 dB
Maximum Operating Temperature:
+125 °C
Length:
3mm
Pin Count:
5
Offset Voltage:
9mV
Typical Input Voltage Noise Density:
40nV/√Hz
Mounting Type:
Surface Mount
Output Current:
20 (Sink) mA, 40 (Source) mA
Input Voltage Range:
3 → 32 V
Typical Single Supply Voltage:
3 → 32 V
Height:
1mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
General Purpose
Maximum Input Voltage:
32 V
Minimum Input Voltage:
3 V
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
40 mA
Operating Temperature:
-40°C ~ 85°C

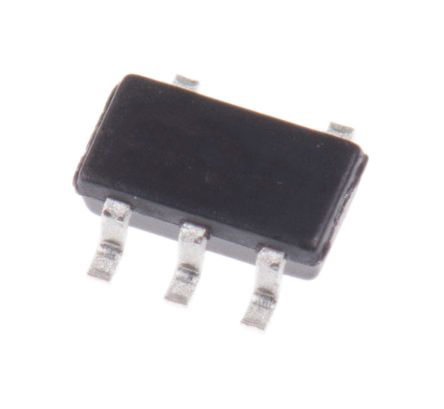

Package / Case:
SOT-23-5 Thin, TSOT-23-5
Current - Input Bias:
10 nA
Voltage - Input Offset:
300 µV
Voltage - Supply Span (Max):
32 V
Voltage - Supply Span (Min):
3 V
REACH Status:
REACH Unaffected
Output Type:
-
Current - Supply:
300µA
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
0.4V/µs
standardLeadTime:
41 Weeks
Number of Circuits:
1
Gain Bandwidth Product:
900 kHz
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
5-TSOP
Amplifier Type:
General Purpose
Base Product Number:
LM321
ECCN:
EAR99
