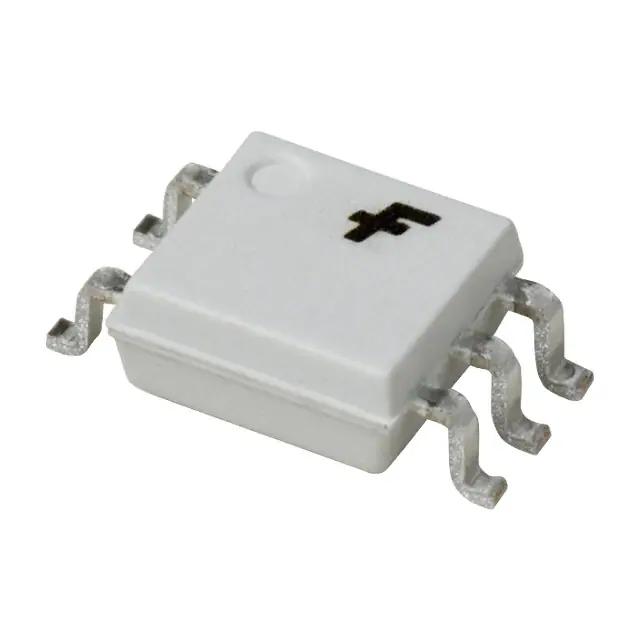

ON Semiconductor FODM452R2 DC Input Phototransistor Output Optocoupler, Surface Mount, 6-Pin MFP

FODM452R2 ON Semiconductor DC Input Phototransistor Output Optocoupler, Surface Mount, 6-Pin MFP
FODM452R2
FODM452R2
ET14154469
ET14154469
Optoisolators - Transistor, Photovoltaic Output
Optoisolators - Transistor, Photovoltaic Output
Fairchild Semiconductor

Product Information

Maximum Forward Voltage:
1.8V
Output Device:
Phototransistor
Isolation Voltage:
3.75 kVrms
Mounting Type:
Surface Mount
Maximum Current Transfer Ratio:
50%
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
MFP
Maximum Input Current:
25 mA
Logic Output:
Yes
HTSUS:
8541.49.8000
Vce Saturation (Max):
-
Operating Temperature:
-40°C ~ 85°C
Input Type:
DC
Package / Case:
6-SOIC (0.173", 4.40mm Width), 5 Leads
Current - DC Forward (If) (Max):
25 mA
Current Transfer Ratio (Min):
20% @ 16mA
Current Transfer Ratio (Max):
50% @ 16mA
Rise / Fall Time (Typ):
-
Output Type:
Transistor
Number of Channels:
1
Voltage - Output (Max):
20V
Current - Output / Channel:
8mA
Package:
Bulk
Voltage - Forward (Vf) (Typ):
1.6V
Voltage - Isolation:
3750Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
5-Mini-Flat
Turn On / Turn Off Time (Typ):
400ns, 350ns
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is ON Semiconductor DC Input Phototransistor Output Optocoupler Surface Mount 6-Pin MFP manufactured by Fairchild Semiconductor. The manufacturer part number is FODM452R2. The product is available in surface mount configuration. It is comprised of 6 pins. It is supplied with 1 channels. It is assigned with possible HTSUS value of 8541.49.8000. The product has -40°c ~ 85°c operating temperature range. It carries dc input type. Moreover, the product comes in [Package/ Case]. The maximum DC forward current of the product is 25 ma. It has a minimum current transfer ratio of 20% @ 16ma. Excellent efficiency with a maximum current transfer ratio of 50% @ 16ma. Furthermore, it has atransistor output. While the maximum output voltage is 20v. It carries 8ma output or channel current. It is shipped in bulk. The typical forward voltage (Vf) of the product is 1.6v. 3750vrms of isolation voltage. 5-mini-flat is the supplier device package value. The product has a typical turn On and Off time of 400ns, 350ns. The product is designated with the ear99 code number

pdf icon
FODM452, FODM453, 5-Pin Mini Flat Package High Speed Transistor Optocoupler Data Sheet(Technical Reference)
