Maximum Time Base:
50s/div
Power Source:
Mains
Minimum Time Base:
5ns/div
Oscilloscope Type:
Bench
Dimensions:
381 x 142 x 204mm
Digital/Analogue:
Digital
Sample Rate Random:
2 G samples/s, 4 G samples/s
Minimum Vertical Sensitivity:
1mV/div
Record Length:
1 M points/ch, 2M points/ch
Input Capacitance:
8 pF
Screen Size:
8.5in
Number of Digital Channels:
16
Interface:
CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
Input Impedance:
1 (Analogue) MΩ, 100 (Digital) kΩ
Maximum Vertical Sensitivity:
5V/div
Display Type:
WVGA
Rise Time:
3.5ns
Weight:
3.9kg
Vertical Resolution:
1 (Digital) bit, 8 (Analogue) bit

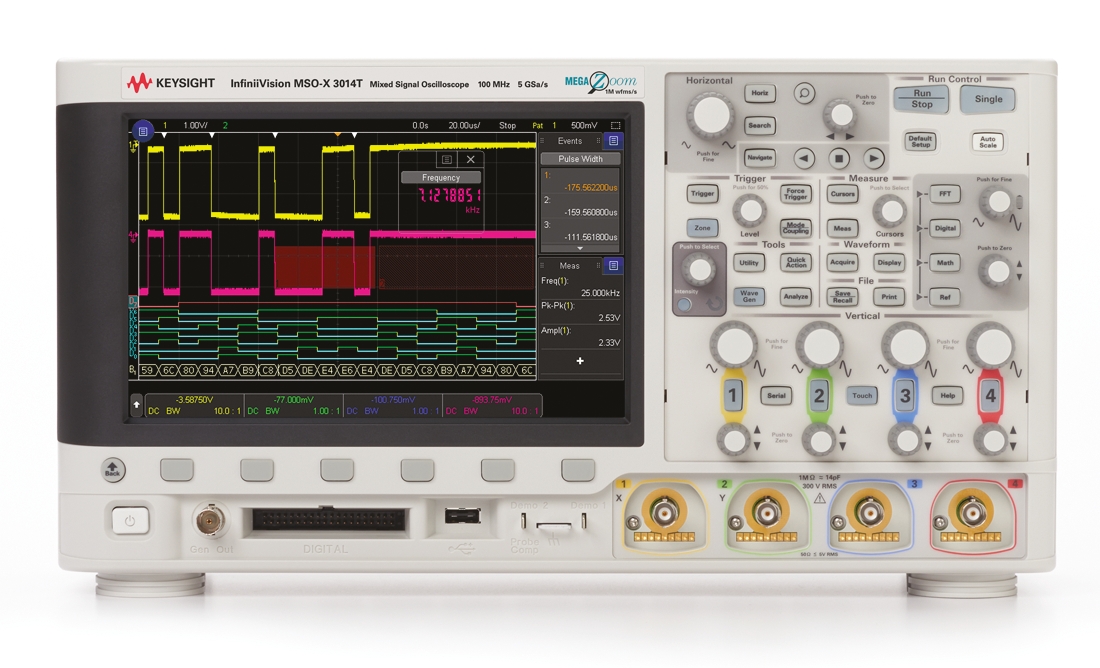

Series:
InfiniiVision 3000T X
Oscilloscope Form:
Mixed Signal
Safety Category:
CAT I
Bandwidth:
100MHz
Number of Analogue Channels:
4
