Dimensions:
381 x 204 x 142mm
Power Source:
Mains
Minimum Time Base:
500ps/div
Interface:
CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
Oscilloscope Type:
Bench
Maximum Time Base:
50s/div
Digital/Analogue:
Digital
Sample Rate Random:
1.25 (Digital) G samples/s, 2.5 (All Analogue) G samples/s, 5 (All Half Analogue) G samples/s
Minimum Vertical Sensitivity:
1mV/div
Number of Digital Channels:
16
Screen Size:
8.5in
Number of Analogue Channels:
2
Record Length:
2 (Analogue) M points/ch, 2 (Digital) M points/ch
Maximum Vertical Sensitivity:
5V/div
Display Type:
TFT LCD
Weight:
4kg
Vertical Resolution:
8 bit, 12 bit
Series:

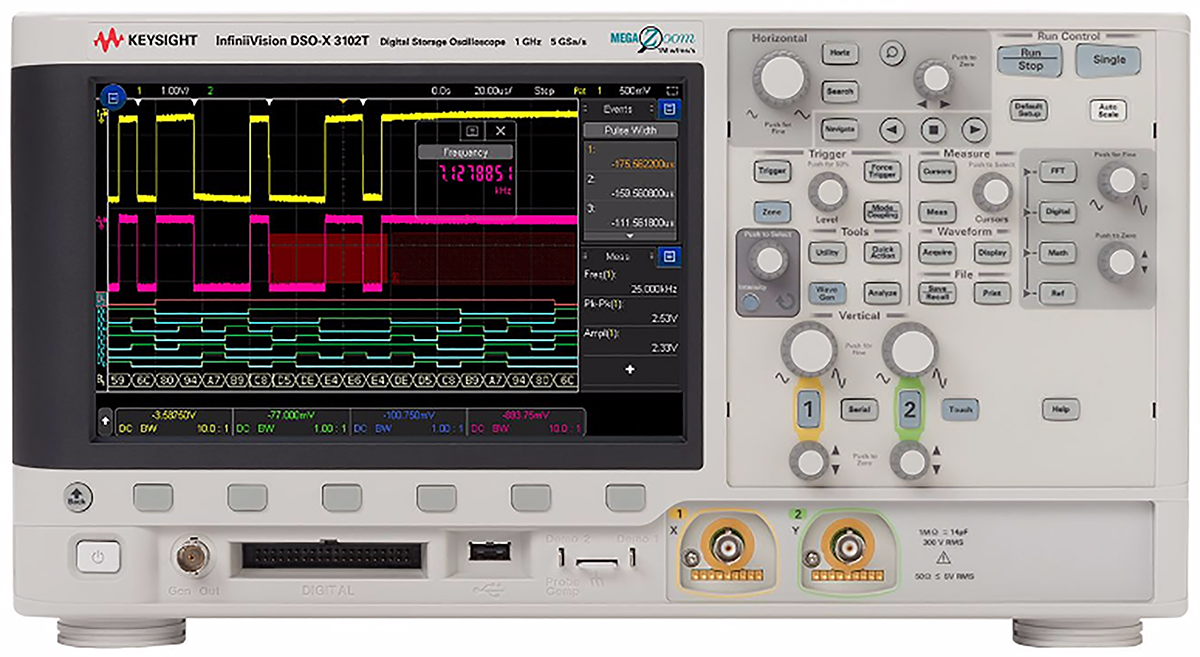

InfiniiVision 3000T X
Oscilloscope Form:
Mixed Signal
Safety Category:
CAT I ±40V
Bandwidth:
1GHz
Rise Time:
≤450ps
