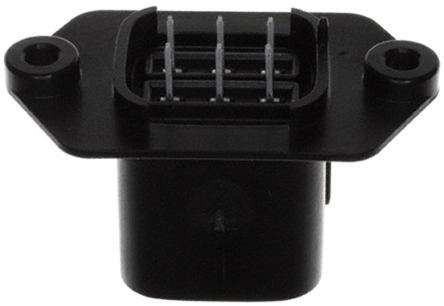

Molex MX150L 19428, 5.84mm Pitch, 6 Way, 2 Row, Straight PCB Header, Through Hole

19428-0012 Molex MX150L 19428, 5.84mm Pitch, 6 Way, 2 Row, Straight PCB Header, Through Hole
19428-0012
19428-0012
19428-0012 Molex MX150L 19428, 5.84mm Pitch, 6 Way, 2 Row, Straight PCB Header, Through Hole
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
18.0A
Mounting Type:
Through Hole
Series:
MX150L
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Tin
Pitch:
5.84mm
Number of Contacts:
6
Contact Material:
Copper Alloy
Manufacturer Standard Lead Time:
13 Weeks
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Panel Mount, Through Hole 6 position 0.230" (5.84mm)
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
6
Contact Length - Post:
0.130" (3.30mm)
Insulation Height:
1.094" (27.80mm)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Black
Row Spacing - Mating:
0.236" (6.00mm)
Connector Type:
Header
Number of Positions Loaded:
All
Fastening Type:
Locking Ramp
Termination:
Solder
Pitch - Mating:
0.230" (5.84mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Mounting Flange
Mounting Type:
Panel Mount, Through Hole
Series:
MX150L 19428
Packaging:
Tray
Contact Finish - Mating:
Tin
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is MX150L 19428 5.84mm Pitch 6 Way 2 Row Straight PCB Header Through Hole manufactured by Molex. The manufacturer part number is 19428-0012. The product has a current rating of 18.0a. The product is available in through hole configuration. The product mx150l, is a highly preferred choice for users. It comes in 2 of rows. Moreover, the product is 5.84mm The product contains 6 contacts. The product is made from sturdy copper alloy materials. It has typical 13 weeks of manufacturer standard lead time. Additionally, the product is designed with board to cable/wire Style. It features connector header panel mount, through hole 6 position 0.230" (5.84mm). Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 6. 0.130" (3.30mm) is the given possible contact length (post) values. 1.094" (27.80mm) of insulation height. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. In addition, black is the insulation color of the product. It carries 0.236" (6.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has 0.230" (5.84mm) of pitch-mating value. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board guide, mounting flange. The product is available in panel mount, through hole configuration. The product mx150l 19428, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has nice contact finishing of tin. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polybutylene terephthalate (pbt), glass filled insulation material.
